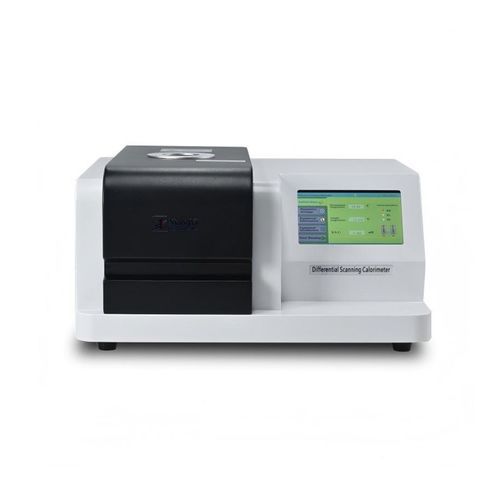

Heat-flow calorimeter DSC3000

DSClow-temperaturehigh-temperature

Product overview
Designed to determine internal thermal transitions by measuring the relationship between temperature and heat flow, the DSC3000 is a heat-flux differential scanning calorimeter suitable for polymer R&D, performance testing and quality control. The instrument provides high accuracy and repeatability, supports simple calibration and a wide range of laboratory applications including specific heat measurement.

Applications
The DSC is used to study glass transition, cold crystallization, phase transitions, melting, crystallization, stability, curing/crosslinking and oxidation induction. Typical uses include polymer curing temperature and enthalpy, phase-change temperature and enthalpy, polymer crystallization and melting analysis, and glass transition determination. Sample types: solids, liquids and viscous samples (gases generally excluded).

Working principle
The sample and reference are placed in crucibles and heated under a controlled program. Thermal events in the sample produce a temperature difference relative to the reference, visible as peaks on the DSC/DTA curve. Peak direction indicates exothermic or endothermic processes; the number, position, area, height and shape of peaks characterize the thermal events. The device records heat flow difference (mW) versus time or temperature.

Performance advantages

• New furnace design improving resolution and baseline stability.
• Digital gas flow meter for controlled purge gas flow and direct data recording.
• Two-way control (instrument and software) with an intuitive interface.
• Cortex-M3 ARM core controller for faster processing and stable temperature control.
• USB two-way communication for data exchange.
• 7-inch 24-bit color LCD touchscreen for local operation.
• Alloy sensor with enhanced corrosion and oxidation resistance.

Experimental principle (summary)
DSC measures the power difference between sample and reference under controlled temperature programs; ordinate: heat flow difference (mW); abscissa: time or temperature. Baseline and peak behavior allow interpretation of thermal events (endothermic/exothermic) and their characteristics.

SPECIFICATIONS
Model: DSC3000 (upgrade of DSC200 & DSC2000)
DSC range: 0 ~ ±600 mW
Temperature range: RT ~ 600 °C
Cooled method: Air-cooled
Semiconductor cooling -40 °C: Optional
Liquid nitrogen cooling -150 °C: Optional
Curve scanning: Heating & cooling temperature scan
Heating rate: 1 ~ 100 °C/min
Cooling rate*: 5 ~ 30 °C/min
Temperature resolution: 0.001 °C
Temperature fluctuations: ±0.001 °C
Temperature repeatability: ±0.01 °C
DSC noise: 0.01 μW
DSC resolution: 0.01 μW
DSC accuracy: 0.001 mW
DSC sensitivity: 0.01 μW
Temp. Control Mode: Heating, cooling & constant temperature (auto program control)
Temperature sensor: 1 for sample; 1 for instrument; 1 for furnace
Atmosphere gas control: Nitrogen, oxygen auto switch
Gas flow rate: 0–300 mL/min
Gas pressure: 0.2 MPa
Display: 24bit 7-inch LCD touch screen
Data interface: USB interface
Software: Three-in-one operation software, suitable for DSC, TGA, STA connection
Parameter standard: Supplied with indium, tin and lead for temperature and enthalpy correction
Dimensions (L×W×H): 505×405×155 mm
Power supply: AC 220V/110V, 50~60 Hz

Standard accessories
Host instrument: 1
Software: 1
Data line: 1
Power line: 1
Aluminum crucibles: 200
Bag of pure tin grains: 1
Fuse 10A: 5
Operation manual: 1
Warranty card: 1
Certification: 1

Technical specifications

• Model: DSC3000
• DSC range: 0 ~ ±600 mW
• Temperature range: RT ~ 600 °C
• Cooled method: Air-cooled (semiconductor -40 °C and LN2 -150 °C optional)
• Heating rate: 1 – 100 °C/min; Cooling rate: 5 – 30 °C/min
• Temperature resolution: 0.001 °C; Fluctuation: ±0.001 °C; Repeatability: ±0.01 °C
• DSC noise/resolution/sensitivity: 0.01 μW; DSC accuracy: 0.001 mW
• Atmosphere control: Nitrogen/oxygen auto switch; Gas flow: 0–300 mL/min; Gas pressure: 0.2 MPa
• Display: 7-inch 24-bit LCD touchscreen; Data interface: USB
• Software: Three-in-one operation software (compatible with DSC, TGA, STA)
• Standards: Supplied with indium, tin and lead for calibration
• Dimensions: 505 × 405 × 155 mm; Power: AC 220V/110V, 50–60 Hz
• Standard accessories included: host, software, data line, power line, 200 aluminum crucibles, tin grains, fuses, manual, warranty card, certification
