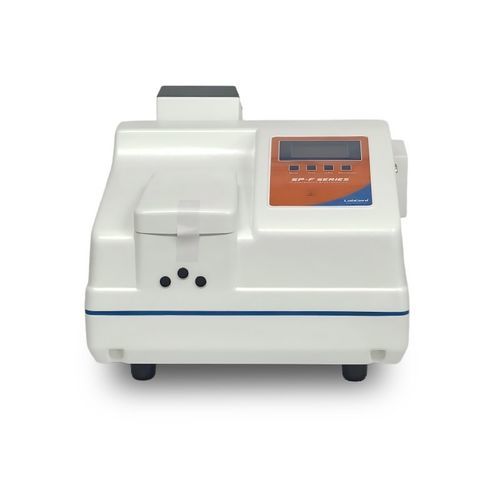

Fluorescence microplate reader SP-F96S

with monochromatormulti-modestand-alone

Product overview
Fluorescence spectrophotometers SP-F96S and SP-F96pro are designed for pharmaceutical, biochemical and clinical laboratories for qualitative and quantitative analysis of samples. They support research, quality control and food safety workflows with modes for spectrum scanning, kinetic measurements and intensity-based quantification.

Features

• Two operation modes: fluorescence intensity and emission scanning; supports spectral scanning, fluorescence kinetics and quantitative assays.
• Light sources: SP-F96S with high-intensity cold LED array; SP-F96pro with 150 W xenon lamp and photomultiplier option for increased sensitivity.
• Ten selectable emission-spectrum sweep speeds including high-speed low-noise and fine scanning; maximum 30000 nm/min enables full-spectrum scans in ~1 second; intelligent pre-scan auto-detects spectral features, excludes scattering peaks and recommends optimal measurement parameters.
• Integrated microcomputer control: direct concentration readout, auto-zero, automatic background subtraction and USB 2.0 data transfer with PC software.
• Normalization of fluorescence values to compare results across different fluorophores and experiments.
• Advanced analysis software: wavelength scanning with zoom, multi-curve comparison, peak detection and area calculation, 1–4th derivative spectra; quantitative analysis via standard-curve method.
• Multiple sample holders and accessories: hole cuvette holder, multipurpose fluorescent sample holder, 200 μl Eppendorf adapter, micro-capillary holder, semi-automatic injection module, film and powdered sample holders and sheathed cuvette racks; measures sample volumes down to 5 μl and supports solids and high-concentration samples.
• Compact footprint to optimize bench space in laboratory environments.

Included standard items

• Host: 1 set (available models SP-F96S and SP-F96pro)
• Emission LED sources: SP-F96S — 365 nm, 405 nm, 465 nm, 515 nm; SP-F96pro — 365 nm
• Software: 1 pc
• 10 mm quartz cell: 2 pcs
• Power cable: 1 pc
• USB cable: 1 pc
• Fuse (2A): 2 pcs

Technical specifications

• Model: SP-F96S / SP-F96pro
• Detection sensitivity (water Raman S/N): SP-F96S ≥ 90 (P-P); SP-F96pro ≥ 150 (P-P)
• Excitation bandwidth: SP-F96S 10/20 nm; SP-F96pro 10 nm
• Emission bandwidth: 10 nm (both models)
• Emission wavelength accuracy: ±1.0 nm (both models)
• Emission wavelength repeatability: ≤0.5 nm (both models)
• Optical system: C-T automatic scanning grating monochromator; fluorescence receiver: Hamamatsu photomultiplier (both models as specified)
• Emission wavelength range (LED): SP-F96S 250–600 nm; SP-F96pro 200–850 nm
• Emission wavelength range (full): SP-F96S 200–650 nm; SP-F96pro 200–900 nm
• Wavelength scanning speed: up to 30000 nm/min; fine scan 15 nm/min
• Measurement linearity: ≥ 0.995
• Gain adjustment: 1–17 selectable positions
• Integration (response) time: 0.1 s–4 s (6 selectable)
• Scan time setting: up to 60,000 s
• Data output formats: Microsoft Excel, BMP images
• Data interface: USB 2.0
• Light value range: 0.00–600
• Peak intensity repeatability: ≤ 1.5%
• Power supply: 220 V/50 Hz or 110 V/60 Hz
• Power consumption: SP-F96S 35 W; SP-F96pro 190 W
• Dimensions (W×D×H): 442 × 400 × 250 mm (both models)
• Weight: Gross 14 kg, Net 9.6 kg (both models)
