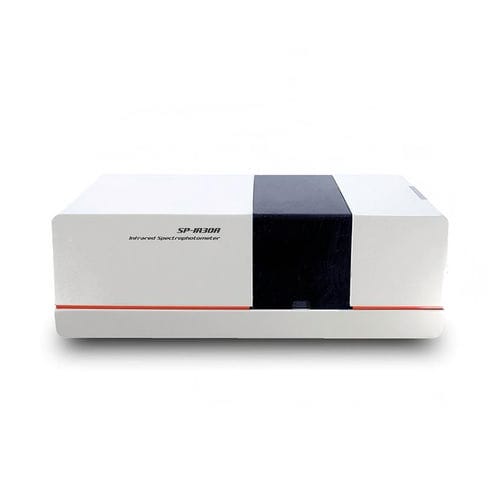

Mid-infrared spectrometer SP-IR30A

infraredfor teachingfor research and development

Product description
SP-IR30A is an upgraded double-beam infrared spectrometer based on the SP-IR-30 proportional recording design required by national pharmacopeia standards. It records absorption and reflection spectra over the 4000–400 cm-1 range and uses a DTGS detector to provide stable operation with low maintenance requirements. The instrument is intended for laboratory analysis in quality control, research and teaching.

Features

• Proportional recording with computer-based data acquisition for accurate spectral capture
• High-efficiency double-blazed grating covering the full operating range
• PC control and integrated data processing allowing creation and management of a custom spectral library
• Windows operating system with English interface for straightforward operation
• USB2.0 interface for data export and peripheral connectivity
• DTGS detector with domestic thermocouple solution for stable performance and reduced maintenance costs

Main functions of the software

• Audit trail: secure database storage with immutable original records; logs include user login, modification timestamps and acquisition parameters
• Data processing: baseline memory and correction, spectral accumulation, %T ↔ ABS conversion, smoothing, baseline tilt correction, peak detection and labeling, spectrum comparison, differential and arithmetic operations, spectral expansion (scale and absorption)
• Data export and reporting: preview, print and export spectra and numerical data to Excel; most functions available offline

Specifications
MODEL: SP-IR30A Double Beam Infrared spectrometer
Detector: DTGS
Wave number range (cm-1): 4000-400
Wavenumber accuracy (cm-1): ±4 (4000-2000); ±2 (2000-400)
Wavenumber repeatability (cm-1): ≤2 (4000-2000); ≤1 (2000-400)
Resolution (cm-1): 1.5 (near 1000) — polystyrene: 7 peaks near 3000 distinguishable at 1% height
Transmittance accuracy (%T): ±0.2 (excluding noise level)
Stray light (%T): ≤0.5 (4000-650); ≤1 (650-400)
Baseline straightness (%T): ±2
Coordinate expansion: arbitrary (horizontal and vertical)
Measurement modes: Transmittance, Absorbance, Single beam (energy)
Scan speed: five selectable options
Slit width: five selectable options
Operating modes: continuous scan, repeated scan, fixed-wavelength scan
Detector response: five selectable options
Data transmission: USB2.0
Operating voltage: AC220V 50Hz, 2kW
Operating system: Windows
Weight: 50 kg
Ambient temperature: 15–28 ℃
Relative humidity: <65% (no condensation)

Caractéristiques / Spécifications techniques

• Model: SP-IR30A
• Detector: DTGS
• Wave number range: 4000-400 cm-1
• Wavenumber accuracy: ±4 (4000-2000); ±2 (2000-400) cm-1
• Repeatability: ≤2 (4000-2000); ≤1 (2000-400) cm-1
• Resolution: 1.5 cm-1 (near 1000)
• Transmittance accuracy: ±0.2 %T
• Stray light: ≤0.5 %T (4000-650); ≤1 %T (650-400)
• Baseline straightness: ±2 %T
• Data transmission: USB2.0
• Operating voltage: AC220V 50Hz, 2kW
• Operating system: Windows
• Weight: 50 kg
• Ambient temperature: 15–28 ℃
• Relative humidity: <65% (no condensation)
