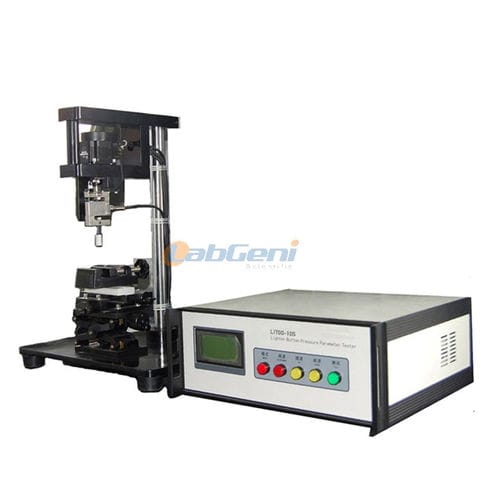

Bench-top force gauge and torque meter LIT00-10S

digitalautomaticwith graphic display

Product overview:
Instrument for measuring the pressing force and displacement of lighter ignition buttons on straight-hit and ramp-hit lighters. Intended for laboratory testing and production-line quality control.

Function and application:

• Measures button pressing force and axial displacement during ignition cycles
• Triggers ignition via vertical reciprocating motion and records sensor and encoder data
• Applicable in R&D, incoming inspection, production adjustment and end-of-line testing

Key features:

• Precision pressure sensor for force measurement
• Grating encoder for displacement measurement
• Automatic detection of ignition event and pass/fail evaluation based on set criteria
• Real-time display of pressing force and force–displacement curve on control box

Technical specifications:

• Working voltage: AC220V
• Pressure measuring range: 0–100 N
• Pressure measurement accuracy: ±0.5 N
• Displacement measuring range: 0–20 mm
• Displacement measurement accuracy: ±0.1 mm

Output and operation:
Signals are collected and processed by the control box, with numerical readouts and graphical force–displacement curves. The system can automatically classify test results according to configured criteria and supports integration into production control workflows.
