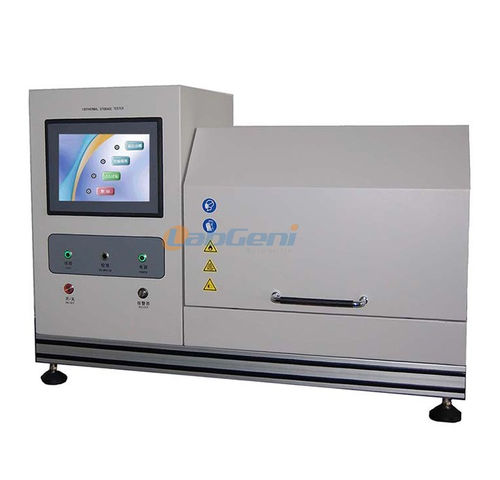

Reaction calorimeter CIT30-10S

heat-flowfully-automaticisothermal

Product description
CIT30-10S Self Accelerating Decomposition Temperature Tester (Isothermal) is used to determine the heat generation rate of decomposition or reaction substance under constant temperature. The measured fever parameters together with the heat loss data of package to determine substance in the container SADT. In line with the UN Recommendations on the Transport of Dangerous Goods – Manual of Tests and Criteria 28.4.3 Test H.3: Isothermal storage test

Product Features

• Embedded processor, Windows CE operating system
• 8-inch LCD touch screen to display the test status in real time
• Built soaking aluminum block to ensure furnace temperature uniformity and stability and improve heat detection sensitivity
• Digital PID algorithm for precise temperature control and high precision temperature control
• Integrated cooling system for rapid cooling of the test furnace, easy to operate
• Auxiliary safety device for overheating protection; automatically cuts off the heating system at a predetermined temperature
• Sound and light automatic fault detection and alarm functions to ensure secure testing
• Real-time display of running time, temperature and heat flow, automatic drawing of test curve; raw data can be searched
• Diversified test selection; user-configurable test parameters according to sample properties
• Fully automated testing process without human intervention; supports parameter setting, data storage and viewing reports

Product parameters

• Operating environment: 5 ℃ ~ 30 ℃, <85% RH
• Temperature range: -20 ℃ ~ 200 ℃
• Temperature stability: ± 0.2 ℃
• Temperature measuring range: -30 ℃ ~ 250 ℃
• Temperature display resolution: 0.1 ℃
• Temperature measurement accuracy: ± 0.5 ℃
• Heat flow meter sensitivity: 50 μV/mW
• Sample container volume: 70 ml

Technical specifications

• Model: CIT30-10S
• Purpose: Determine heat generation rate of decomposition/reaction substances under constant temperature for SADT determination
• Control and OS: Embedded processor running Windows CE; digital PID temperature control
• Display: 8-inch LCD touch screen with real-time status, time, temperature and heat flow display and automatic test curve drawing
• Heating block: Soaking aluminum block for improved temperature uniformity and sensitivity
• Cooling: Built-in rapid cooling system for the furnace
• Safety: Overheating protection with automatic heating cut-off; sound and light fault detection and alarm
• Data: Raw data storage, searchable data, report viewing supported
• Automation: Fully automated testing process with configurable parameters
• Environmental operating limits: 5 ℃ to 30 ℃, <85% RH
• Temperature operating range: -20 ℃ to 200 ℃; measuring range -30 ℃ to 250 ℃
• Accuracy & resolution: Stability ±0.2 ℃; display resolution 0.1 ℃; measurement accuracy ±0.5 ℃
• Heat detection sensitivity: 50 μV/mW
• Sample cell volume: 70 ml
