Safety tester LIT01-10S

sparkperformancefuel quantity

Product description:

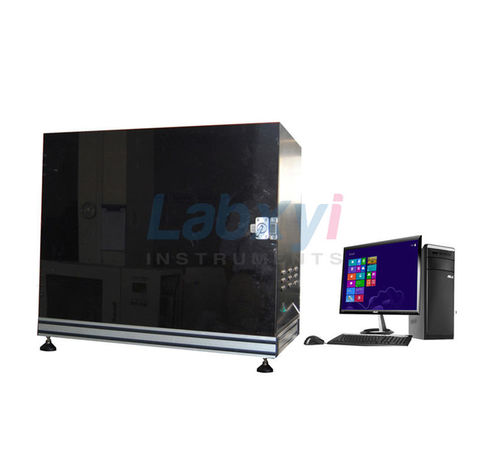

Lighter flame height image detector designed to test single batches of five lighters. Compatible with straight, inclined and grinder-type lighters. The instrument allows parameter configuration according to lighter characteristics and supports automatic sampling, automatic ignition, automatic flame height measurement, detection of flame extinguishing, ignition/explosion events, splashing fire and flame flashover. The detection process displays flame status parameters in real time, determines pass/fail for each lighter, and automatically generates and stores test reports. The instrument is equipped with an independent enclosed test chamber to improve safety and reliability.

Product parameters:
Adaptation lighter type: Straight & Inclined & Grinders
Lighter size: height 63–83 mm; width 21–25 mm
Single lot detection number: 5
Flip positioning accuracy: ± 0.5°
Flame height measurement accuracy: 3 mm
Flame height detection frequency: 25 frames/sec
Flame height detection range: 0–200 mm
Power supply: AC 220 V / 50 Hz
Dimension: 750 × 500 × 680 mm

Technical specifications:

• Adaptation lighter type: Straight, Inclined, Grinders
• Lighter size: height 63–83 mm; width 21–25 mm
• Single lot detection number: 5 lighters per batch
• Flip positioning accuracy: ± 0.5°
• Flame height measurement accuracy: 3 mm
• Flame height detection frequency: 25 frames/sec
• Flame height detection range: 0–200 mm
• Power supply: AC 220 V, 50 Hz
• Dimensions: 750 × 500 × 680 mm
