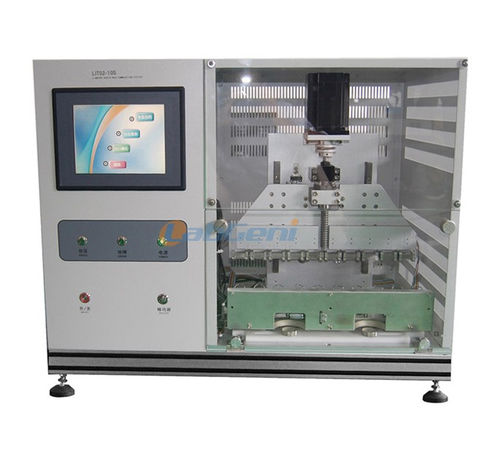

Fire reaction testing machine LIT02-10S

burn-inflammabilityautomatic

Product description
Instrument for continuous burning tests capable of performing simultaneous combustion testing on 10 lighters. Horizontal and vertical stepper motors enable fine adjustment to fit different lighter geometries. The ignition mechanism ensures each lighter reaches and maintains combustion while photoelectric sensors detect flame presence and verify the pressing stroke. A flexible head improves adaptability and provides double safety protection. Test reports are generated automatically and saved for traceability.

Product parameters
Adaptable lighter types: straight, inclined, wheel-type
Lighter height: 60–90 mm
Timing accuracy: 1 s
Capacity per batch: 10 lighters
Continuous burning time (set): 10–250 s
Cycle interval time: 10–3600 s
Power supply: AC 220 V / 50 Hz
Dimensions (W×D×H): 750 × 500 × 680 mm

Technical specifications

• Model / SKU: LIT02-10S
• Simultaneous testing capacity: 10 lighters
• Compatible lighter types: straight, inclined, wheel-type
• Acceptable lighter height: 60–90 mm
• Timing accuracy: 1 s
• Continuous burning time (per set): 10–250 s
• Cycle interval range: 10–3600 s
• Ignition mechanism: ensures each lighter achieves combustion
• Flame detection: photoelectric sensors detect flame and verify press stroke
• Motion control: horizontal and vertical stepper motors for fine adjustment
• Safety features: flexible head and double protection
• Output: automatic generation and storage of test reports
• Power supply: AC 220 V, 50 Hz
• Dimensions (W×D×H): 750 × 500 × 680 mm
