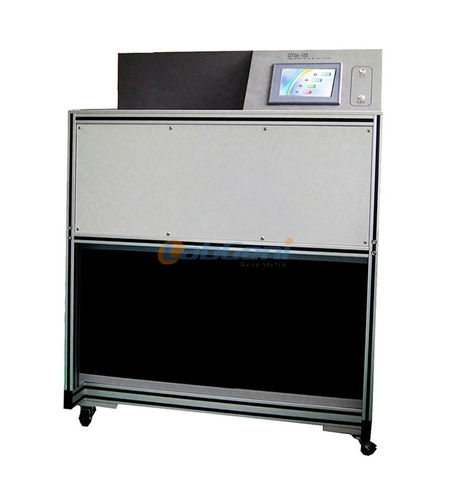

Digital leak tester LIT04-10S

leakagemulti-headhigh-speed

Product overview:
Weighing leak detection system for lighters LLD-6 designed to determine fuel leakage after standard tests such as carrying/drop test, high-temperature test, repeated gas injection, compatibility tests and burning-liquid volumetric displacement test. The instrument accepts lighters up to 350 mm × 50 mm × 50 mm.

Operating modes and functions:

• Balance mode: functions as a precision scale to weigh the test sample with high resolution; integrated timing allows leak detection according to test timing standards.
• Continuous mode: single-channel operation supports streamlined continuous testing of up to 6 lighters in 2 minutes; individual lighter leakage can be obtained within 1 minute to determine pass/fail against test criteria.
• Adjustment modes: leveling and calibration modes for installation and measurement verification.
• Instrument design: modular construction with high-precision balances; dual isolation technology and real-time level sensors reduce environmental interference; high-stability transmission and efficient handling provide accurate weighing, precise timing, automatic compliance determination and automatic generation and storage of final test reports.

Technical specifications:

• Detection efficiency: 6 lighters / 2 minutes
• Detection accuracy: 0.1 mg
• Detection range: 90 g
• Timing accuracy: 0.01 s
• Timing range: 0 ~ 24 h
• Compatible lighter maximum size: 350 mm × 50 mm × 50 mm
• Overall dimensions (L × W × H): 1 m × 0.6 m × 1.25 m
• Power supply: 220 VAC / 50 Hz
• Standby power rating: 30 W
• Operational rated power: 200 W

Applications and compliance:

• Designed for quality control in lighter production lines, test laboratories and certification centers to verify post-test fuel leakage.
• Compatible with industry tests including drop, high-temperature, repeated gas injection and burning-liquid volumetric displacement methods.
• Provides automated reporting for traceable QC records and process integration.
