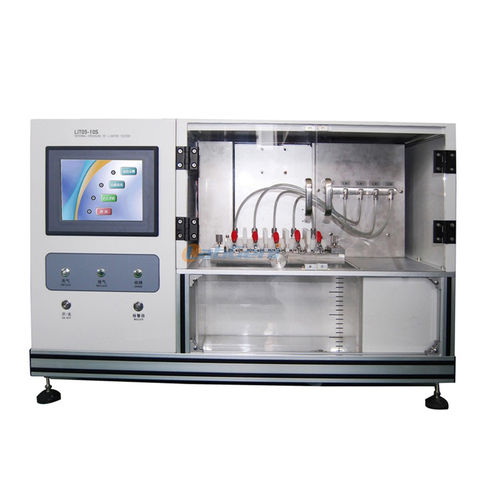

Air-driven pressure test unit LIT05-10S

Product overview:
Pressure tester designed to measure internal pressure of lighter gas tanks and ignition/firing guns. Provides automated leak detection per branch and calibration capability for instrument barometers.

Operating modes:

• Detection mode: set parameters on the display, align the lighter inflatable port, clamp the unit and start the sequence. The clamping mechanism inserts the unit into the water tank and opens the branch valve. The system inflates the branch to the programmed pressure (typical detection inflation up to ~1500 kPa), then closes the gas path and monitors the pressure gauge to detect leaks; leaking branches can be identified and isolated via software.
• Calibration mode: select instrument calibration, connect a standard barometer to the branch being calibrated (other branches closed). The instrument compares its barometer readings with the standard and adjusts/calibrates each branch barometer in sequence.

Technical specifications:

• Pressure range: 500 kPa to 2 MPa
• Pressurization rate: 10 kPa/s to 150 kPa/s
• Supply air pressure: up to 6 MPa
• Air pressure fluctuation tolerance: 5%–8%
• Pressure control accuracy: ±10 kPa
• Pressurization rate control accuracy: ±10 kPa/s
• Detection inflation example: branches can be inflated to about 1500 kPa during detection sequences

Mechanical and software features:

• Clamping movement mechanism to position units into the water tank and actuate branch valves
• Needle valve adjustment for controlled inflation
• Automated leak identification per branch with software-guided isolation
• Barometer comparison routine for branch-by-branch calibration against a standard

Applications:

• Inline quality control for production of lighters and ignition devices
• Batch leak testing and traceability in manufacturing lines
• Calibration labs for routine verification of pressure gauges on multi-branch test rigs

Ordering and accessories:

• Interfaces provided for connection of an external standard barometer for calibration
• Compatible with standard water tanks and clamping fixtures; needle valves and branch manifolds included or configurable per line requirements
• Specify number of branches and calibration standard when ordering
