Optical inspection system VVR series

video visionautomatedvideo

Description

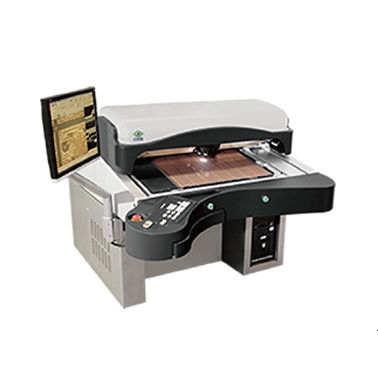

Hybrid-mode AOI verification station for IC Substrates with minimum line/space support down to 4 µm. VVR combines virtual (post-processed AOI images) and live video verification within a single workstation to support high-volume manufacturing of IC substrates. Series include VVR 4μ, VVR 5μ, VVR 7μ, VVR 10μ and VVR 15μ.

Highlights

• Integrated verification of AOI post-processed images and live video
• Up to 70% increase in verification efficiency versus traditional verification modes
• Display of post-processed color defect images directly from AOI
• Variable zoom and automated calibration for repeatable inspection
• Stationary vacuum table for secure substrate handling
• Ergonomic workstation design
• Clear defect imaging with adjustable video lighting

Options

• Auto-marker for automated defect marking
• Barcode reader for traceability
• Adjustable monitor arm
• CDB™/CDBIC™ — defect classification and virtual defects mapping
• SharpLight™ — enhanced video image processing
• Optional touchscreen for operator classification and real-time QA feedback

Technical specifications

• Product type: Hybrid-mode AOI verification station for IC Substrates
• Minimum line/space supported: down to 4 µm
• Series models: VVR 4μ, VVR 5μ, VVR 7μ, VVR 10μ, VVR 15μ
• Verification modes: virtual verification (post-processed AOI images) and live video mode
• Image processing: advanced image enhancement algorithms; post-processed color defect images from AOI
• Efficiency improvement: up to 70% vs. traditional verification mode
• Optics/features: variable zoom, automated calibration, adjustable video light, SharpLight™ option
• Mechanics: stationary vacuum table, ergonomic design, adjustable monitor arm (option)
• Traceability/marking: Auto-marker option, barcode reader option
• Software/options: CDB™/CDBIC™ for defect classification and virtual defects mapping
• Integration: compatible with all CIMS AOI systems
