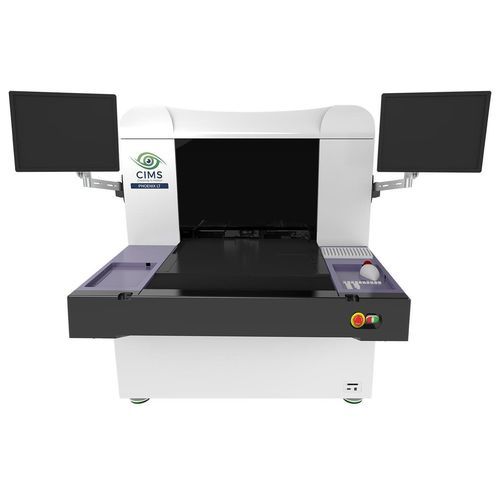

Optical inspection system Phoenix LTvideo visioncameraautomated
Add to favorites
Compare this product
Characteristics
- Technology
- camera, optical, video vision
- Operational mode
- automated
- Type
- quality control, for defect detection, measurement, soldering
- Applications
- for the electronics industry, for PCB
- Product applications
- for large parts, for sheet material
- Configuration
- in-line
- Other characteristics
- high-resolution, computer-controlled, non-contact
Description
Description
Phoenix LT is an AOI (Automated Optical Inspection) system designed for large-panel electronic assemblies. It inspects panels up to 36" x 42" (914 mm x 1,067 mm) with minimum line/space capability down to 40 µm. The system integrates Microlight™ optical technology for controlled illumination and combines high-quality image acquisition with customizable detection algorithms. Phoenix LT is part of the Phoenix product family and uses the Spark™ cross-platform detection engine to support low false call rates and efficient defect detection.
Highlights
Options
Technical specifications
Phoenix LT is an AOI (Automated Optical Inspection) system designed for large-panel electronic assemblies. It inspects panels up to 36" x 42" (914 mm x 1,067 mm) with minimum line/space capability down to 40 µm. The system integrates Microlight™ optical technology for controlled illumination and combines high-quality image acquisition with customizable detection algorithms. Phoenix LT is part of the Phoenix product family and uses the Spark™ cross-platform detection engine to support low false call rates and efficient defect detection.
Highlights
- Linear motors for smooth and silent motion
- Robust mechanical structure for stable scanning
- Automated vacuum table for secure panel handling
- High-performance image processing firmware
- Powerful processors to handle large image datasets
- Fast and intuitive setup for new jobs
- Compatible with front/back AMHS automation or robot integration
- Two operator monitors (one on each side) for convenient operation
Options
- Fi™ – final inspection option for finished boards
- +2DM™ metrology – panel dimensions measurement
- +2CD™ metrology – 2D measurement of circuit elements
- LDI™ – laser drill inspection option
- CDB™ / CDBIC™ – defect classification and virtual defect mapping
- VVS™ – virtual verification system
Technical specifications
- Max. panel size: 36" x 42" (914 mm x 1,067 mm)
- Minimum line/space inspection capability: 40 µm
- Optical technology: Microlight™ for optimized light coverage
- Detection engine: Spark™ cross-platform detection engine
- Image acquisition: state-of-the-art image acquisition hardware and advanced software
- Motion system: linear motors for smooth and silent motion
- Table: automated vacuum table
- Processing: high-performance image processing firmware and powerful processors to handle large data
- Automation compatibility: compatible with front/back AMHS or robot integration
- Operator ergonomics: two monitors (one on each side) for convenient operation
