Optical inspection system Galaxy 30μ
video visioncameraautomated

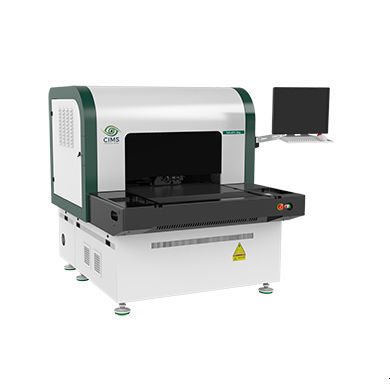

Optical inspection system - Galaxy 30μ - CIMS - video vision / camera / automated
Optical inspection system - Galaxy 30μ - CIMS - video vision / camera / automated
Add to favorites
Compare this product

Characteristics

Technology
camera, optical, video vision
Operational mode
automated
Type
for defect detection, measurement, BGA, soldering
Applications
for PCB
Configuration
in-line
Other characteristics
high-resolution, computer-controlled, non-contact

Description

Description
AOI for HDI and multi-layer PCB with min line/space down to 30 µm. Galaxy 30μ, CIMS AOI system, is designed to support high volume manufacturing of HDI and multi-layer PCB. It is capable to scan down to 30 µm line/space width technology. The system’s state of the art optical technology Microlight™ Gen II provides optimal light coverage in order to be able to meet the most rigorous detection requirements. Optimized performance is achieved by combining superior image quality with customizable detection algorithms. Equipped with the state-of-the-art image acquisition and advanced software capabilities, the Galaxy product family is renown for its exceptional detection achieved with lowest possible false calls rate. Galaxy 30μ is powered by Spark™ 3.0 – CIMS latest generation cross-platform detection engine.

Highlights
  • Linear motors for smooth & silent motion
  • Compact mechanical platform
  • High performance image processing firmware
  • Enhanced illumination block
  • Fast and intuitive setup for new jobs
  • Compatible with front AMHS automation or robot

Options
  • Fi™ – final inspection option for finished boards
  • +2DM™ metrology – panel dimensions measurement
  • +2CD™ metrology – 2D measurement of circuit elements
  • LDI™ – laser drill inspection option
  • CDB™/CDBIC™ – defects classification and virtual defects mapping
  • VVS™ – virtual verification system

Caractéristiques / spécifications techniques
  • Application: Automated Optical Inspection (AOI) for HDI and multi-layer PCB
  • Minimum line/space capability: 30 µm
  • Optical technology: Microlight™ Gen II
  • Detection engine: Spark™ 3.0 (CIMS latest generation cross-platform detection engine)
  • Image acquisition: State-of-the-art image acquisition and advanced software capabilities
  • Detection performance: Exceptional detection with lowest possible false calls rate
  • Motion system: Linear motors for smooth and silent motion
  • Mechanical platform: Compact
  • Firmware: High performance image processing firmware
  • Illumination: Enhanced illumination block
  • Setup: Fast and intuitive setup for new jobs
  • Automation compatibility: Compatible with front AMHS automation or robot
  • Available optional modules: Fi™, +2DM™, +2CD™, LDI™, CDB™/CDBIC™, VVS™
