Optical inspection system CVR 100 Fi
video visioncameraautomated

Optical inspection system - CVR 100 Fi - CIMS - video vision / camera / automated
Optical inspection system - CVR 100 Fi - CIMS - video vision / camera / automated
Add to favorites
Compare this product

Characteristics

Technology
camera, optical, video vision
Operational mode
automated
Type
quality control, for defect detection, surface defect, visual, video
Applications
for the electronics industry, for PCB
Other characteristics
high-resolution, computer-controlled, non-contact

Description

Description

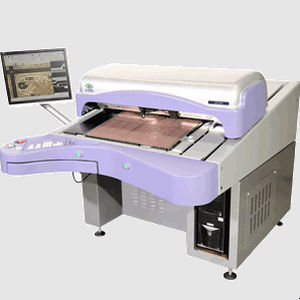

AVI verification station for finished boards, designed for inspection of high-end HDI and IC substrates. CVR 100 Fi is optimized for technologies with line/space widths from 10 µm (minimum) and for typical processes in the 10–30 µm range. The system combines advanced multi-configuration illumination and adjustable video light to deliver clear defect images and precise defect classification. Robust mechanics and high-performance hardware ensure high throughput and reliable operation. The user interface and ergonomic design support efficient operator interaction with minimal training required. CVR 100 Fi is fully compatible with CDB™ and CDBIC™ data management systems and integrates with all CIMS AOI systems and the Phoenix Fi final inspection AVI system.

Highlights
  • Multiple illumination configurations for flexible defect detection
  • Variable zoom with automated calibration
  • Stationary vacuum table for stable handling
  • Ergonomic design for operator comfort and efficiency
  • Optimized defect-to-defect movement to reduce inspection time
  • Clear defect image with adjustable video lighting

Options
  • Auto-marker for defect marking
  • Barcode reader for traceability
  • Adjustable monitor arm
  • CDB™/CDBIC™ — defects classification and virtual defects mapping
  • VVS™ — virtual verification system
  • SharpLight™ — enhanced video image

Compatibility
Fully compatible with CDB™ and CDBIC™ data management systems. Integrates with all CIMS AOI systems and Phoenix Fi final inspection AVI system.

Technical specifications
  • Product type: AVI verification station for finished boards
  • Target substrates: high-end HDI and IC substrates
  • Line/space capability: optimized for 10–30 µm (minimum down to 10 µm)
  • Illumination: advanced multi-configuration illumination; adjustable video light
  • Optics: variable zoom with automated calibration
  • Table: stationary vacuum table
  • Design: ergonomic user interface and workstation
  • Performance: robust mechanics and high-performance hardware for high throughput
  • Movement: optimized defect-to-defect movement
  • Defect handling: supports convenient defect marking and repair; optional auto-marker
  • Optional accessories: barcode reader, adjustable monitor arm
  • Software compatibility: CDB™ / CDBIC™; VVS™ virtual verification; SharpLight™ enhanced video image
  • Integration: compatible with all CIMS AOI systems and Phoenix Fi final inspection system
