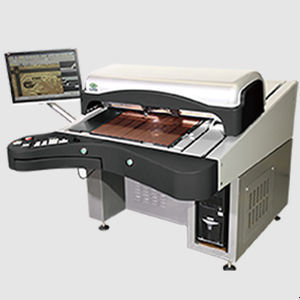

Optical inspection machine VVR

visualvideoPCB

Description
Hybrid-mode AOI verification station for MLB PCBs combining virtual (post-processed) and live video verification in a single workstation. Designed for high-volume manufacturing with support for minimum line/space down to 25+ µm. The VVR series includes models optimized for different line/space technologies: VVR 25µ and VVR 30µ.

Highlights

• Integrated review of AOI post-processed defect images and live video inspection
• Up to 70% increase in verification efficiency compared with traditional verification workflows
• Displays color defect images captured directly from the AOI system
• Variable optical zoom with automated calibration
• Stationary vacuum table for stable placement of MLB PCBs
• Ergonomic workstation design for operator comfort
• Clear defect imaging with adjustable video illumination

Options

• Auto-marker for defect marking
• Barcode reader for traceability
• Adjustable monitor arm
• CDB™ / CDBIC™ — defects classification and virtual defects mapping
• SharpLight™ — enhanced video image processing

Technical specifications

• Product type: Hybrid-mode AOI verification station for MLB PCBs
• Minimum line/space supported: 25+ µm
• Models: VVR 25µ, VVR 30µ (optimized per line/space technology)
• Designed for high-volume MLB PCB production lines
• Supports verification of AOI post-processed images and live video inspection modes
• Advanced image enhancement algorithms to speed false-call filtering
• Optional touchscreen for defect classification and immediate QA feedback
• Integration with factory database for verification results and traceability
• Variable zoom optics and automated calibration routine
• Stationary vacuum table to ensure board stability during inspection
• Ergonomic layout and adjustable video light for optimal defect visibility
• Optional accessories: auto-marker, barcode reader, adjustable monitor arm
• Optional software/features: CDB™/CDBIC™ (defect classification & virtual mapping), SharpLight™ (enhanced video)
• Compatibility: Compatible with all CIMS AOI systems
• Estimated efficiency improvement: up to 70% vs. traditional verification mode
