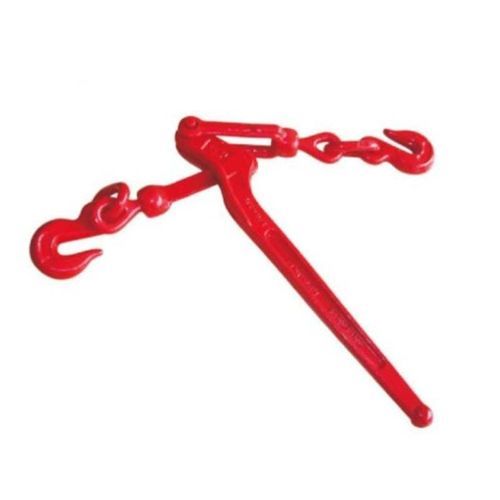

Chain load binder

levermanualhand

Product Overview
Lever Type Load Binder for industrial load securing and tensioning. Lever fulcrum uses an overweight structure for improved tensile resistance; binder root is designed to bend to facilitate unloading. Equipped with 360° free-swivel hooks and engineered for heavy-duty applications across ports, shipbuilding, mining, construction and transportation sectors.

Introduction

• Designed for safe, heavy-duty transport tensioning
• Drop-forged steel construction; high strength
• Free 360° swivel hooks for flexible attachment
• Heat-treated components for increased durability
• Each binder is individually proof tested
• Drop-forged or cast construction available on request

Parameter

• Chain Size 1/4-5/16 — W.L.L.: 2,600 lbs; Proof Load: 5,200 lbs; Min. Ultimate Load: 7,800 lbs; Weight: 3.52 lbs; Handle Length: 11.42 in; Dimensions (A B C D E F G): 18.5, 17.3, 14.17, 11.42, 8.27, 8.07, 0.35
• Chain Size 5/16-3/8 — W.L.L.: 5,400 lbs; Proof Load: 10,800 lbs; Min. Ultimate Load: 19,000 lbs; Weight: 8.37 lbs; Handle Length: 15.43 in; Dimensions (A B C D E F G): 25.2, 23.2, 19.49, 15.55, 11.22, 11.22, 0.51
• Chain Size 3/8-1/2 — W.L.L.: 9,200 lbs; Proof Load: 18,400 lbs; Min. Ultimate Load: 28,000 lbs; Weight: 12.11 lbs; Handle Length: 17.24 in; Dimensions (A B C D E F G): 28.5, 26.38, 22.05, 17.64, 12.99, 12.20, 0.59
• Chain Size 1/2-5/8 — W.L.L.: 11,000 lbs; Proof Load: 22,000 lbs; Min. Ultimate Load: 44,000 lbs; Weight: 19.7 lbs; Handle Length: 21.00 in; Dimensions (A B C D E F G): 33.86, 30.12, 25.78, 20.87, 14.37, 14.37, 0.74

Standards
Manufactured to applicable industry standards; certificates and test reports available on request.

Caractéristiques / spécifications techniques

• Model: Lever Type Load Binder
• Material: Drop forged steel (casting available on request)
• Design features: lever fulcrum overweight structure for tensile resistance; binder root bendable to ease unloading; hook buckle and tee kit designed to resist axial tension; free 360° swivel hooks; heat-treated components; individual proof testing
• Typical applications: port operations, power and utilities, iron & steel, shipbuilding, petrochemical, mining, rail, construction, metallurgy, automotive manufacturing, plastic machinery, industrial control, highways and large transport, pipeline auxiliary equipment, tunnels, well management and protection, marine rescue, ocean engineering, airport and bridge construction, aviation, aerospace, venues and infrastructure machinery
• Chain Size 1/4-5/16 — W.L.L.: 2,600 lbs; Proof Load: 5,200 lbs; Min. Ultimate Load: 7,800 lbs; Weight: 3.52 lbs; Handle Length: 11.42 in; Dimensions (A B C D E F G): 18.5, 17.3, 14.17, 11.42, 8.27, 8.07, 0.35
• Chain Size 5/16-3/8 — W.L.L.: 5,400 lbs; Proof Load: 10,800 lbs; Min. Ultimate Load: 19,000 lbs; Weight: 8.37 lbs; Handle Length: 15.43 in; Dimensions (A B C D E F G): 25.2, 23.2, 19.49, 15.55, 11.22, 11.22, 0.51
• Chain Size 3/8-1/2 — W.L.L.: 9,200 lbs; Proof Load: 18,400 lbs; Min. Ultimate Load: 28,000 lbs; Weight: 12.11 lbs; Handle Length: 17.24 in; Dimensions (A B C D E F G): 28.5, 26.38, 22.05, 17.64, 12.99, 12.20, 0.59
• Chain Size 1/2-5/8 — W.L.L.: 11,000 lbs; Proof Load: 22,000 lbs; Min. Ultimate Load: 44,000 lbs; Weight: 19.7 lbs; Handle Length: 21.00 in; Dimensions (A B C D E F G): 33.86, 30.12, 25.78, 20.87, 14.37, 14.37, 0.74
