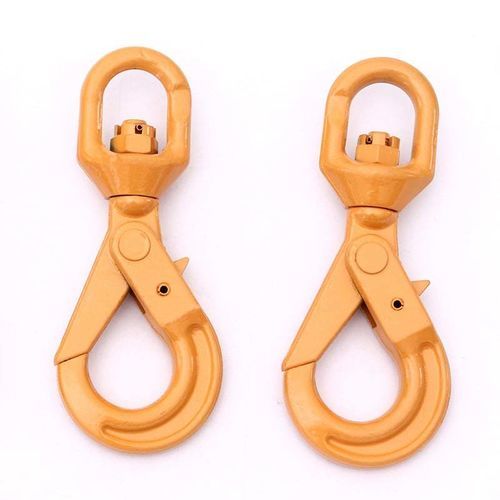

Lifting hook Grade 100

clevisfor lifting equipmentself-locking

Product Description
Locking Clevis Grip Hook Grade 100 designed for lifting and load-securing applications. Quenched and tempered alloy steel construction. Manufactured in accordance with EN 1677-1 and tested to ASTM A952/A-DIN PAS 1061. Proof load tested at 2.5 × WLL with batch certification. Design factor 4:1. Fatigue rated to 20,000 cycles at 1.5 × WLL. Minimum tempering temperature 400°C.

Parameters

• WLL 8800 lb | 4.0 tons | Chain 3/8 in. | A 0.43 in. | H 1.22 in. | K 6.02 in. | O 1.93 in. | P 2.80 in. | T 1.06 in. | W 5.47 in. | Weight 4.2 lb
• WLL 15000 lb | 6.7 tons | Chain 1/2 in. | A 0.55 in. | H 1.54 in. | K 8.11 in. | O 2.24 in. | P 3.15 in. | T 1.34 in. | W 6.85 in. | Weight 9.0 lb
• WLL 22600 lb | 10.0 tons | Chain 5/8 in. | A 0.71 in. | H 1.85 in. | K 9.57 in. | O 3.07 in. | P 4.49 in. | T 1.54 in. | W 8.35 in. | Weight 14.0 lb
• WLL 35300 lb | 16.0 tons | Chain 3/4 in. | A 0.83 in. | H 2.20 in. | K 12.20 in. | O 3.58 in. | P 5.00 in. | T 2.13 in. | W 9.84 in. | Weight 28.0 lb
• WLL 42700 lb | 19.0 tons | Chain 7/8 in. | A 0.94 in. | H 2.32 in. | K 11.81 in. | O 4.13 in. | P 5.94 in. | T 2.20 in. | W 10.24 in. | Weight 31.1 lb

Standards
Name: Grade 100 Clevis Grip Safe Locking Hook
Package: Carton + Steel Pallet

Technical features / specifications

• Material: Quenched and tempered alloy steel
• Manufactured in accordance with EN 1677-1
• Testing standard: ASTM A952 / A-DIN PAS 1061
• Proof load test: 2.5 × WLL with batch certification
• Design factor: 4:1
• Fatigue rating: 20,000 cycles at 1.5 × WLL
• Tempering temperature: minimum 400°C
• Packaging: Carton + Steel Pallet
