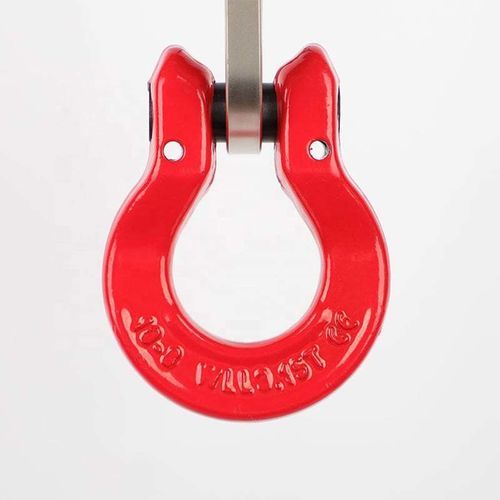

Chain connecting link Grade 80

Overview
Omega Link connecting link for Grade 80 lifting chain. Design factor 4:1; proof tested and certified to EN 1677. Intended for assembly and repair of chain slings and lifting components in industrial applications.

Parameters
Working Load Limit | For Grade 80 Chain | Dimensions (inch) (INCK, D, K, P, T) | Weight (lbs)

• 4,500 lbs | 2.0 tonnes | Size: 1/4–5/16 in; D: 1.06; K: 1.42; P: 0.35; T: 0.44 | Weight: 0.4 lbs.
• 7,100 lbs | 3.15 tonnes | Size: 3/8 in; D: 1.26; K: 1.73; P: 0.47; T: 0.59 | Weight: 0.9 lbs.
• 12,000 lbs | 5.3 tonnes | Size: 1/2 in; D: 1.65; K: 2.17; P: 0.62; T: 0.67 | Weight: 1.8 lbs.
• 18,100 lbs | 8.0 tonnes | Size: 5/8 in; D: 1.96; K: 2.72; P: 0.71; T: 0.89 | Weight: 3.3 lbs.
• 28,300 lbs | 12.5 tonnes | Size: 3/4 in; D: 2.28; K: 3.15; P: 0.85; T: 1.08 | Weight: 4.6 lbs.

Standards
Name: Grade 80 Omega Link
Package: Carton + Steel Pallet

Technical characteristics

• Design factor: 4:1; proof tested and certified to EN 1677.
• Applicable product designation: Grade 80 Omega Link.
• Package: Carton plus steel pallet for protected transport.
• Working load limits and corresponding dimensions/weights:
  • 4,500 lbs (2.0 tonnes) — Size: 1/4–5/16 in; D: 1.06; K: 1.42; P: 0.35; T: 0.44; Weight: 0.4 lbs.
  • 7,100 lbs (3.15 tonnes) — Size: 3/8 in; D: 1.26; K: 1.73; P: 0.47; T: 0.59; Weight: 0.9 lbs.
  • 12,000 lbs (5.3 tonnes) — Size: 1/2 in; D: 1.65; K: 2.17; P: 0.62; T: 0.67; Weight: 1.8 lbs.
  • 18,100 lbs (8.0 tonnes) — Size: 5/8 in; D: 1.96; K: 2.72; P: 0.71; T: 0.89; Weight: 3.3 lbs.
  • 28,300 lbs (12.5 tonnes) — Size: 3/4 in; D: 2.28; K: 3.15; P: 0.85; T: 1.08; Weight: 4.6 lbs.
