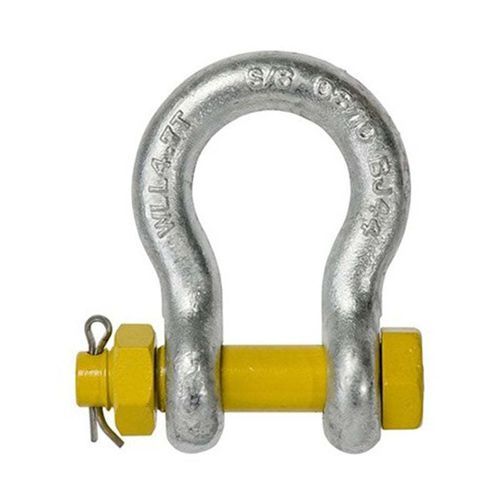

Omega lifting shackle

with safety bolt and nutscrewfor marine applications

Product overview
Grade "S" bolt bow shackles are designed for rated lifting and rigging connections. They provide secure attachments for chain, wire rope and other rated fittings across marine, agricultural, mining and engineering sectors. The bolt/nut/cotter-pin arrangement adds resistance to pin rotation and is preferred for permanent or long-term connections where loads may shift.

Product Features

• Manufactured to AS2741 from Grade "S" material in bow (wide) configuration with screw pin.
• Available finishes: galvanized, powder coating or self-colored.
• Each shackle is stamped with Work Load Limit (WLL) in tonnes and quality grade.
• Proof tested to 2 × WLL; minimum break force 6 × WLL.
• Test certificates available on request.
• Suitable for lifting and rated rigging applications.

Parameters
SIZE (mm) | WLL (ton) | D (mm) | d (mm) | B (mm)
6 | 0.5 | 6 | 8 | 12
8 | 0.75 | 8 | 10 | 13
10 | 1 | 10 | 11 | 17
11 | 1.5 | 11 | 13 | 18
13 | 2 | 13 | 16 | 21
16 | 3.2 | 16 | 19 | 27
29 | 4.7 | 29 | 22 | 32
22 | 6.5 | 22 | 25 | 37
25 | 8.5 | 25 | 29 | 43
29 | 9.5 | 29 | 32 | 46
32 | 12 | 32 | 35 | 52
35 | 13.5 | 35 | 38 | 57
38 | 17 | 38 | 41 | 60
44 | 25 | 44 | 51 | 73
51 | 35 | 51 | 57 | 83
57 | 42.5 | 57 | 63 | 95
63 | 55 | 63 | 70 | 105

Standards
Conforms to AS2741 and manufactured from Grade "S" material.

Technical specifications

• Product type: Australian type drop-forged safety bolt bow shackle (bolt/nut/cotter pin safety).
• Material: Grade "S".
• Configuration: Bow (wide) configuration with screw pin.
• Finishes: Galvanized, powder coating, self-colored.
• Marking: Work Load Limit (WLL) in tonnes and quality grade stamped on each shackle.
• Testing: Proof tested to 2 × WLL; minimum break force 6 × WLL; test certificates available on request.
• Application: Suitable for lifting and rated rigging connections (chain, wire rope and other fittings) in marine, agricultural, mining and engineering industries.
• Available sizes: 6 mm to 63 mm (see parameter table for WLL and dimensional details).
