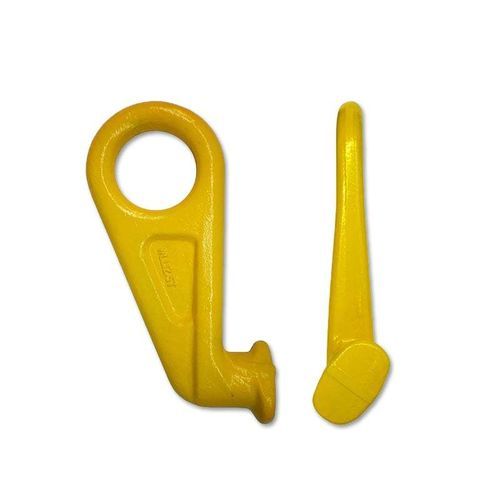

Lifting hook Grade 80eyefor containersfor heavy loads
Add to favorites
Compare this product
Characteristics
- Applications
- lifting
- Type
- eye
- Product applications
- for containers
- Other characteristics
- for heavy loads
- Carrying capacity
12.5 tf
Description
Overview
Grade 80 eye container hook. Design factor 4:1; proof tested and certified.
Introduction
Grade 80 eye container hook designed for container lifting applications. Manufactured and supplied with proof testing and certification to ensure safety and reliability under rated working loads.
Parameter
Table (columns: Working Load Limit (lbs.), tonnes, DSC, Dimensions (inch) K, E, F, T, G, H, Weight (lbs))
28,000 | 12.5 | Straight | K: 7.56 | E: 2.76 | F: 1.81 | T: 0.98 | G: 2.95 | H: 1.89 | Weight: 8.6
28,000 | 12.5 | Left | K: 7.56 | E: 2.76 | F: 1.81 | T: 0.98 | G: 2.95 | H: 1.89 | Weight: 8.6
28,000 | 12.5 | Right | K: 7.56 | E: 2.76 | F: 1.81 | T: 0.98 | G: 2.95 | H: 1.89 | Weight: 8.6
Standards
Name: Grade 80 Eye Container Hook
Package: Carton + Steel Pallet
Technical specifications
Grade 80 eye container hook. Design factor 4:1; proof tested and certified.
Introduction
Grade 80 eye container hook designed for container lifting applications. Manufactured and supplied with proof testing and certification to ensure safety and reliability under rated working loads.
Parameter
Table (columns: Working Load Limit (lbs.), tonnes, DSC, Dimensions (inch) K, E, F, T, G, H, Weight (lbs))
28,000 | 12.5 | Straight | K: 7.56 | E: 2.76 | F: 1.81 | T: 0.98 | G: 2.95 | H: 1.89 | Weight: 8.6
28,000 | 12.5 | Left | K: 7.56 | E: 2.76 | F: 1.81 | T: 0.98 | G: 2.95 | H: 1.89 | Weight: 8.6
28,000 | 12.5 | Right | K: 7.56 | E: 2.76 | F: 1.81 | T: 0.98 | G: 2.95 | H: 1.89 | Weight: 8.6
Standards
Name: Grade 80 Eye Container Hook
Package: Carton + Steel Pallet
Technical specifications
- Product name: Grade 80 Eye Container Hook
- Design factor: 4:1
- Proof tested and certified
- Rated Working Load Limit: 28,000 lbs (12.5 tonnes)
- Available DSC: Straight, Left, Right
- Dimensions (inch) typical: K 7.56, E 2.76, F 1.81, T 0.98, G 2.95, H 1.89
- Weight per unit: 8.6 lbs
- Packaging: Carton plus steel pallet
