Omega lifting shackle G-2130
with safety bolt and nut

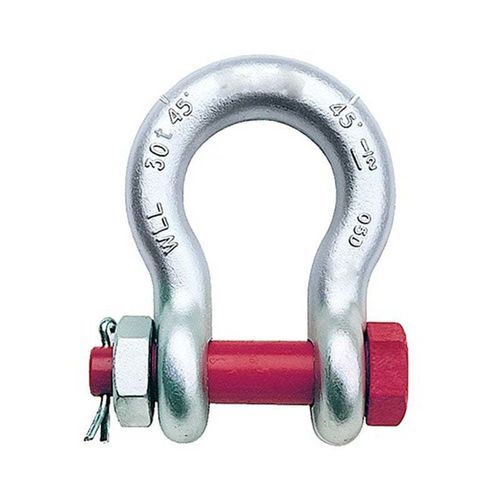

Omega lifting shackle - G-2130 - Xintai Taida Mirso Co., LTD - with safety bolt and nut
Omega lifting shackle - G-2130 - Xintai Taida Mirso Co., LTD - with safety bolt and nut
Omega lifting shackle - G-2130 - Xintai Taida Mirso Co., LTD - with safety bolt and nut - image - 2
Add to favorites
Compare this product
Go to the Xintai Taida Mirso Co., LTD website for more information

Characteristics

Type
omega
Other characteristics
with safety bolt and nut
Breaking load

Max.: 14 t
(15 us ton)

Min.: 0 t
(0 us ton)

Description

Product Overview
Bolt-type safety bow shackles can be used in applications where round-pin or screw-pin shackles are used. They are preferred for permanent or long-term installations, or where there is a risk of the load sliding on the shackle pin and causing rotation.

Product Features
  • Material: Alloy steel, Carbon steel.
  • Finishing: Hot dip galvanized, Electro-Galvanized, or Self-colored.
  • Heat treated: Tempered and quenched.
  • Maximum proof load: 2.0 × Working Load Limit (WLL).
  • Minimum ultimate strength: 4× or 6× WLL.
  • Marking: As per customer requirement.


Parameter
Size | Working Load Limit (t) | Weight (lbs) | A | B | H | E | C | G | P | Tolerance C | Tolerance A
3/16 | 1/3 | 0.06 | 0.38 | 0.25 | 0.88 | 0.6 | 1.47 | 0.98 | 0.19 | 0.06 | 0.06
1/4 | 1/2 | 0.11 | 0.47 | 0.31 | 1.13 | 0.78 | 1.84 | 1.28 | 0.25 | 0.06 | 0.06
3/8 | 1 | 0.33 | 0.66 | 0.44 | 1.44 | 1.03 | 2.49 | 1.78 | 0.38 | 0.13 | 0.06
1/2 | 2 | 0.79 | 0.81 | 0.64 | 1.88 | 1.31 | 3.28 | 2.31 | 0.50 | 0.13 | 0.06
5/8 | 3-1/4 | 1.68 | 1.06 | 0.77 | 2.38 | 1.69 | 4.19 | 2.94 | 0.69 | 0.13 | 0.06
3/4 | 4-3/4 | 2.72 | 1.25 | 0.89 | 2.81 | 2.00 | 4.97 | 3.50 | 0.81 | 0.25 | 0.06
7/8 | 6-1/2 | 3.95 | 1.44 | 1.02 | 3.31 | 2.28 | 5.83 | 4.03 | 0.97 | 0.25 | 0.06
1 | 8-1/2 | 5.66 | 1.69 | 1.15 | 3.75 | 2.69 | 6.56 | 4.69 | 1.06 | 0.25 | 0.06
1-3/8 | 13-1/2 | 15.83 | 2.25 | 1.53 | 5.25 | 3.63 | 9.16 | 6.38 | 1.50 | 0.25 | 0.13

Technical specifications
  • Model: G-2130 (US Type Drop Forged Safety Bolt Bow Shackle)
  • Materials: Alloy steel, Carbon steel
  • Finishing options: Hot dip galvanized, Electro-galvanized, Self-colored
  • Heat treatment: Tempered and quenched
  • Maximum proof load: 2.0 × Working Load Limit (WLL)
  • Minimum ultimate strength: 4× or 6× WLL
  • Marking: Per customer requirement
  • Application: Suitable where round pin or screw pin shackles are used; preferred for permanent/long-term applications or where load may slide and rotate pin
  • Available sizes (in): 3/16, 1/4, 3/8, 1/2, 5/8, 3/4, 7/8, 1, 1-3/8
