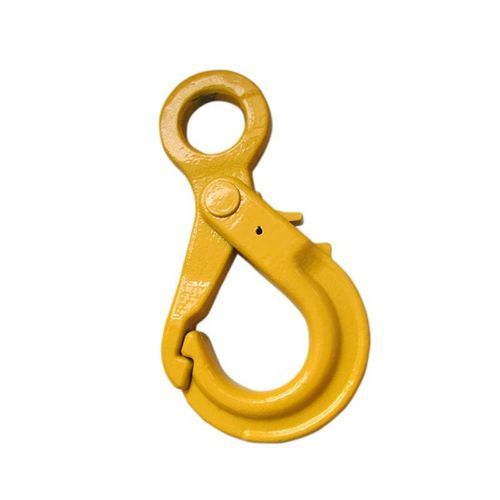

Lifting hook Grade 100

clevisfor chainssafety

Description
Grade 100 clevis self-locking safety hook. The latch automatically closes when a pulling force is applied to the sling. Designed to attach directly to chain via an engineered clevis head to prevent hook-to-chain mismatch. Manufactured from Grade 100 alloy steel, providing at least a 25% increase in working load limit compared with similar Grade 80 products. Tough powder coat finish. Replacement parts available. Proof tested and certified.

Parameters

• FOR CHAIN | A | B | C | G | H | R | T | PxL | Weight (lbs) | WORKING LOAD LIMIT
• 7/32 | 1.10 | 0.28 | 0.31 | 0.63 | 0.83 | 3.70 | 1.38 | 0.30×0.69 | 1.1 | 3,000
• 9/32 | 1.34 | 0.35 | 0.39 | 0.79 | 1.02 | 4.84 | 1.69 | 0.35×0.89 | 2.09 | 4,300
• 5/16 | 1.34 | 0.35 | 0.39 | 0.79 | 1.02 | 4.84 | 1.69 | 0.39×0.89 | 2.09 | 5,700
• 3/8 | 1.77 | 0.47 | 0.55 | 0.98 | 1.18 | 5.63 | 2.20 | 0.51×1.24 | 3.53 | 8,800
• 1/2 | 2.01 | 0.59 | 0.67 | 1.38 | 1.57 | 7.09 | 2.72 | 0.63×1.65 | 7.05 | 15,000
• 5/8 | 2.36 | 0.75 | 0.75 | 1.42 | 1.97 | 8.46 | 3.15 | 0.83×2.03 | 13.23 | 22,600
• 3/4 | 2.76 | 0.91 | 1.02 | 2.36 | 2.64 | 9.96 | 3.54 | 0.94×2.87 | 21.61 | 35,300
• 7/8 | 3.23 | 1.02 | 1.26 | 2.44 | 2.76 | 11.30 | 3.94 | 1.02×2.83 | 31.75 | 42,700

Standards
Name: Grade 100 Clevis Self Locking (Safety) Hook
Package: Carton + Steel Pallet

Characteristics / technical specifications

• Product name: Grade 100 Clevis Self Locking (Safety) Hook
• Material: Grade 100 alloy steel
• Self-locking latch: latch automatically closes when pulling force is applied to the sling
• Engineered clevis head to attach directly to chain and prevent hook-to-chain mismatch
• Working load limit: at least 25% increase vs similar Grade 80 products (see Parameters for WLL per chain size)
• Finish: tough powder coat
• Proof tested and certified
• Replacement parts available
• Packaging: carton plus steel pallet
