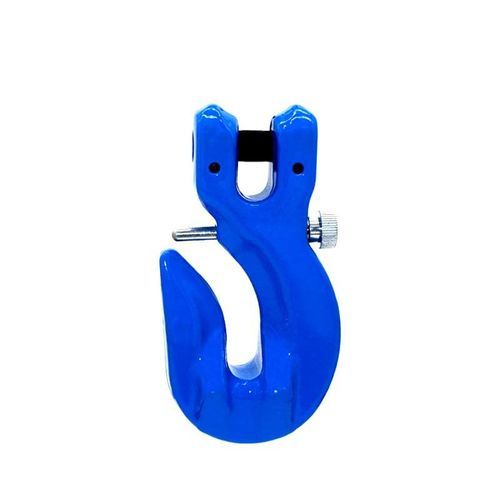

Grab hook Grade 80
clevissafetysteel

Grab hook - Grade 80 - Xintai Taida Mirso Co., LTD - clevis / safety / steel
Grab hook - Grade 80 - Xintai Taida Mirso Co., LTD - clevis / safety / steel
Grab hook - Grade 80 - Xintai Taida Mirso Co., LTD - clevis / safety / steel - image - 2
Grab hook - Grade 80 - Xintai Taida Mirso Co., LTD - clevis / safety / steel - image - 3
Add to favorites
Compare this product
Go to the Xintai Taida Mirso Co., LTD website for more information

Characteristics

Applications
grab
Type
clevis
Other characteristics
safety
Material
steel
Carrying capacity

Max.: 125.9 kN

Min.: 15.6 kN

Description

Product Overview
  • Grade 80 clevis grab hook with safety pin
  • Grade 80 alloy steel
  • Tough powder coat finish
  • Design factor 4:1
  • Proof tested and embossed with grade and size


Parameter
  • FOR CHAIN | WORKING LOAD LIMIT (lbs) | A (in) | B (in) | C (in) | d (in) | E (in) | f (in) | G (in) | H (in) | L (in) | WEIGHT (lbs)
  • 9/32 in | 3,500 | 1.42 | 0.087 | 2.13 | 0.12 | 2.13 | 0.39 | 1.10 | 3.78 | 1.18 | 0.88
  • 3/8 in | 7,100 | 1.81 | 1.10 | 2.95 | 0.12 | 2.76 | 0.49 | 1.38 | 4.88 | 1.69 | 1.85
  • 1/2 in | 12,000 | 2.24 | 1.42 | 3.66 | 0.16 | 3.39 | 0.63 | 1.50 | 6.06 | 2.05 | 3.56
  • 5/8 in | 18,100 | 2.76 | 1.65 | 4.25 | 0.20 | 3.98 | 0.79 | 1.97 | 7.05 | 2.52 | 5.17
  • 3/4 in | 28,300 | 3.14 | 3.11 | 5.27 | 0.19 | 4.84 | 0.94 | 2.36 | 8.62 | 3.54 | 10.58


Standards
  • Name: Grade 80 Clevis Grab Hook w/ Safety Pin
  • Package: Carton + Steel Pallet


Features / Technical specifications
  • Material: Grade 80 alloy steel
  • Finish: Tough powder coat
  • Design factor: 4:1
  • Proof tested and embossed with grade and size
  • Packaging: Carton + steel pallet
  • Working load limits and main dimensions by chain size: 9/32 in — WLL 3,500 lbs; A 1.42 in; B 0.087 in; C 2.13 in; d 0.12 in; E 2.13 in; f 0.39 in; G 1.10 in; H 3.78 in; L 1.18 in; Weight 0.88 lbs
  • 3/8 in — WLL 7,100 lbs; A 1.81 in; B 1.10 in; C 2.95 in; d 0.12 in; E 2.76 in; f 0.49 in; G 1.38 in; H 4.88 in; L 1.69 in; Weight 1.85 lbs
  • 1/2 in — WLL 12,000 lbs; A 2.24 in; B 1.42 in; C 3.66 in; d 0.16 in; E 3.39 in; f 0.63 in; G 1.50 in; H 6.06 in; L 2.05 in; Weight 3.56 lbs
  • 5/8 in — WLL 18,100 lbs; A 2.76 in; B 1.65 in; C 4.25 in; d 0.20 in; E 3.98 in; f 0.79 in; G 1.97 in; H 7.05 in; L 2.52 in; Weight 5.17 lbs
  • 3/4 in — WLL 28,300 lbs; A 3.14 in; B 3.11 in; C 5.27 in; d 0.19 in; E 4.84 in; f 0.94 in; G 2.36 in; H 8.62 in; L 3.54 in; Weight 10.58 lbs
