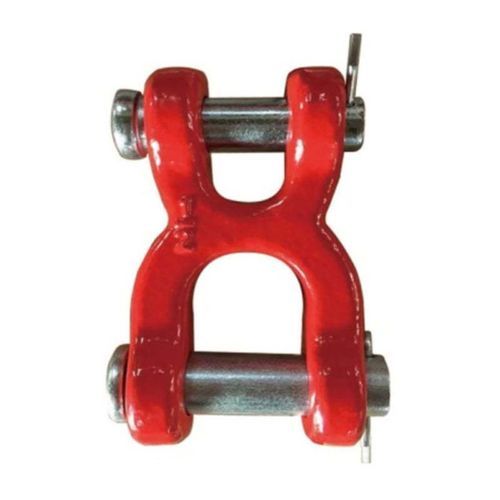

Powder-coated steel clevis Grade 70

forged steelsteel alloy

Overview

• Grade 70 twin clevis links for chain assemblies and transport/rigging connections
• Forged alloy steel (Grade 70)
• Red powder coat finish for identification and corrosion resistance
• Embossed "Grade 70" identification on each link
• Spare parts and replacement links available
• Warning: NOT FOR OVERHEAD LIFTING. NEVER EXCEED WORKING LOAD LIMIT. DO NOT USE FOR LIFTING PEOPLE OR LOADS OVER PEOPLE.

Parameters

• Representative product images available
• Available sizes and WLL shown in the dimensions table below

Dimensions / Working Load Limits (selected)
SIZE | WLL (lbs.) | A | B | C | D | F | G | H | K | WEIGHT (lbs)
1/4-5/16" | 4,500 | 0.47" | 2.50" | 1.16" | 0.38" | 1.13" | 0.43" | 0.94" | 0.50" | 0.31
3/8" | 6,600 | 0.53" | 2.81" | 1.18" | 0.44" | 1.53" | 0.50" | 1.00" | 0.56" | 0.44
7/16-1/2" | 11,300 | 0.65" | 3.62" | 2.31" | 0.56" | 1.91" | 0.63" | 1.31" | 0.81" | 0.98

Standards

• Name: Grade 70 Twin Clevis Links
• Packaging: Carton + steel pallet

Technical specifications

• Product name: Grade 70 Twin Clevis Links
• Material: Forged alloy steel (Grade 70)
• Finish: Red powder coat
• Identification: Embossed "Grade 70" on product
• Availability: Spare parts available
• Packaging: Carton plus steel pallet for shipment
• Usage warning: Not for overhead lifting; never exceed capacity; do not use for lifting people or loads over people
• Available sizes and WLLs (selected): 1/4-5/16" (4,500 lbs), 3/8" (6,600 lbs), 7/16-1/2" (11,300 lbs)
• Detailed dimensional data included showing A, B, C, D, F, G, H, K and weight for each size
