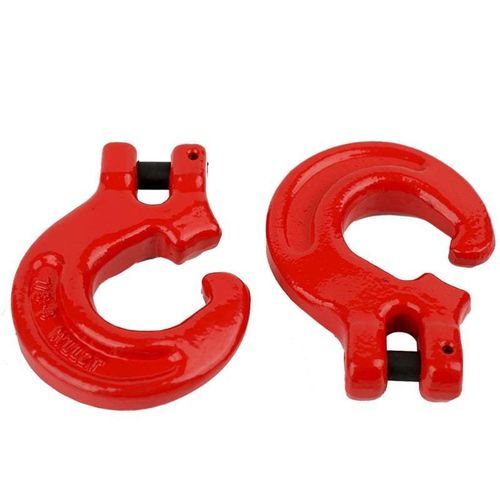

Lifting hook Grade 100 Clevis Foundry Hook

foundryclevisfor chains

Overview
Grade 100 Clevis Foundry Hook manufactured from quenched and tempered alloy steel. Provides at least 25% greater working load limit (WLL) compared with conventional Grade 80 products. Engineered for assembly of chain slings where a wide throat opening is required. Tested to DIN PAS 1061 and ASTM A952/A952M with a design factor of 4:1 and fatigue rating of 20,000 cycles at 1.5× WLL. Minimum tempering temperature: 400°C. Before use, verify whether hooks without safety latches are permitted for the specific application.

Parameter
Working Load Limit (lbs) | tons | A | H | K | P | T | Weight (lbs)
5,700 | 2.5 | 0.35 | 1.06 | 5.24 | 2.44 | 0.75 | 2.1
8,800 | 4.0 | 0.43 | 1.26 | 6.42 | 2.91 | 0.91 | 4.0
15,000 | 6.7 | 0.55 | 1.54 | 7.87 | 3.46 | 1.26 | 7.9
22,600 | 10 | 0.71 | 1.85 | 9.41 | 3.86 | 1.61 | 14.1
35,300 | 16 | 0.83 | 2.44 | 12.01 | 4.45 | 1.81 | 24.6

Standards & Packaging
Name: Grade 100 Clevis Foundry Hook
Package: Carton + Steel Pallet

Key features / technical specifications

• Material: Quenched and tempered alloy steel
• Working Load Limit: multiple options (see Parameter block) with at least 25% greater WLL than traditional Grade 80 products
• Standards/testing: DIN PAS 1061 and ASTM A952/A952M
• Design factor: 4:1
• Fatigue rating: 20,000 cycles at 1.5× WLL
• Minimum tempering temperature: 400°C
• Application: Designed for assembly of chain slings where wide throat openings are necessary
• Safety note: Verify whether hooks without safety latches are permitted for the intended application
