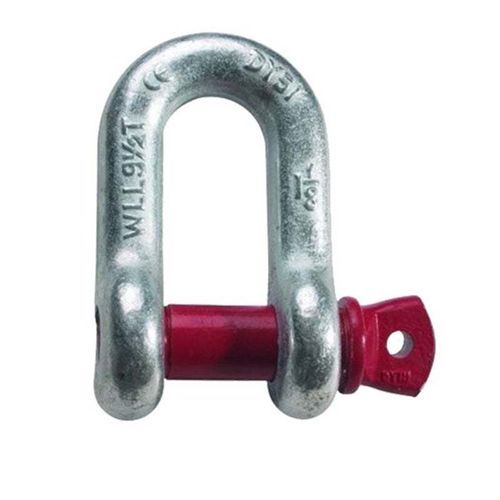

D lifting shackle G-210

screw

Product Overview
Screw-pin dee (D) shackles are drop-forged connectors intended for straight-line pulls or lifts with single-leg web slings. These galvanized shackles suit nylon and polyester slings and serve as a connecting link with chain. They must not be used with multi-leg slings to avoid side loading conditions.

Product Features

• Standard screw pin design for quick assembly and disassembly.
• Drop forged, quenched and tempered construction.
• Available finishes: zinc plated, hot-dip galvanized, powder coating.
• Complies with ASME B30.26 requirements.
• Safety factor: 6:1.
• Working Load Limit (WLL) embossed on each shackle.

Parameter
Nominal Size (in.) | Working Load Limit (t)* | Weight | A | B | C | E | G | K | G | A | Tolerance+/-
1/4 in. | 1/2 | 0.11 | 0.47 | 0.31 | 0.25 | 0.97 | 0.97 | 1.59 | 0.06 | 0.06
5/16 in. | 3/4 | 0.17 | 0.53 | 0.38 | 0.31 | 1.15 | 1.07 | 1.91 | 0.06 | 0.06
3/8 in. | 1 | 0.28 | 0.66 | 0.44 | 0.38 | 1.42 | 1.28 | 2.31 | 0.13 | 0.06
7/16 in. | 1.1/2 | 0.43 | 0.75 | 0.5 | 0.44 | 1.63 | 1.48 | 2.67 | 0.13 | 0.06
1/2 in. | 2 | 0.59 | 0.81 | 0.63 | 0.5 | 1.81 | 1.66 | 3.03 | 0.13 | 0.06
5/8 in. | 3.1/4 | 1.25 | 1.06 | 0.75 | 0.63 | 2.32 | 2.04 | 3.76 | 0.13 | 0.06
3/4 in. | 4.3/4 | 2.63 | 1.25 | 0.88 | 0.81 | 2.75 | 2.4 | 4.53 | 0.25 | 0.06
7/8 in. | 6.1/2 | 3.16 | 1.44 | 1 | 0.97 | 3.2 | 2.86 | 5.33 | 0.25 | 0.06
1 in. | 8.1/2 | 4.75 | 1.69 | 1.13 | 1 | 3.69 | 3.24 | 5.94 | 0.25 | 0.06
1.1/2 in. | 9.1/2 | 6.75 | 1.81 | 1.25 | 1.25 | 4.07 | 3.61 | 6.78 | 0.25 | 0.06
1.1/4 in. | 12 | 9.06 | 2.03 | 1.38 | 1.38 | 4.53 | 3.97 | 7.5 | 0.25 | 0.13
1.3/8 in. | 13.1/2 | 11.63 | 2.25 | 1.5 | 1.5 | 5.01 | 4.43 | 8.28 | 0.25 | 0.13
1.1/2 in. | 17 | 15.95 | 2.38 | 1.63 | 1.62 | 5.38 | 4.84 | 9.05 | 0.25 | 0.13
1.3/4 in. | 25 | 26.75 | 2.88 | 2 | 2.12 | 6.38 | 5.78 | 10.97 | 0.25 | 0.13

Standards
ASME B30.26 (as referenced in features).

Technical specifications

• Model: G-210 (US Type Drop Forged Screw Pin Dee Shackle).
• Intended use: Straight-line pulls or lifts only; for single-leg web lifting slings (nylon, polyester) and as a connecting link with chain.
• Manufacture: Drop forged, quenched and tempered.
• Finishes available: Zinc plated, hot-dip galvanized, powder coating.
• Safety factor: 6:1.
• Working Load Limits (WLL) and dimensions: see Parameter block above for full nominal sizes, WLL, weights and dimensions.
• WLL embossed on each shackle.
