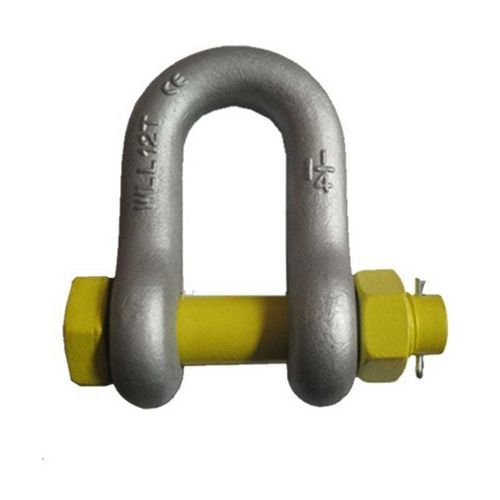

D lifting shackle Australian Type Drop Forged Safety Bolt Dee Shackle

with safety bolt and nutscrew

Product Overview
AS2741 Grade S Dee shackle with safety/bolt pin. Suitable where round-pin or screw-pin shackles are used. Bolt-type shackles are preferable for permanent or long-term installations and where a load may slide on the pin and cause rotation.

Product Features

• Conforms to AS2741, manufactured from Grade S material in Dee (D) configuration with screw/bolt pin.
• Finishes: galvanized, powder coating, or self colored.
• Marked with working load limit (WLL) in tonnes and quality grade.
• Proof tested to 2 × WLL; minimum break force 6 × WLL.
• Test certificates available on request.
• Suitable for lifting and permanent/long-term applications.

Parameters (size table)
SIZE MM | WLL TON | D MM | d MM | B MM
6 | 0.5 | 6 | 8 | 12
8 | 0.75 | 8 | 10 | 13
10 | 1 | 10 | 11 | 17
11 | 1.5 | 11 | 13 | 18
13 | 2 | 13 | 16 | 21
16 | 3.2 | 16 | 19 | 27
29 | 4.7 | 29 | 22 | 32
22 | 6.5 | 22 | 25 | 37
25 | 8.5 | 25 | 29 | 43
29 | 9.5 | 29 | 32 | 46
32 | 12 | 32 | 35 | 52
35 | 13.5 | 35 | 38 | 57
38 | 17 | 38 | 41 | 60
44 | 25 | 44 | 51 | 73
51 | 35 | 51 | 57 | 83

Standards
AS2741

Technical specifications

• Model type: Australian type drop-forged safety bolt Dee shackle.
• Material grade: Grade S.
• Configuration: Dee (D) configuration with safety/bolt pin (screw/bolt pin).
• Finishes: galvanized, powder coated, or self colored.
• Marking: working load limit (WLL) in tonnes and quality grade marked on the shackle.
• Testing: proof tested to 2 × WLL; minimum breaking force 6 × WLL; test certificates available.
• Application: suitable for lifting and for permanent/long-term use where pin rotation risk exists.
