D lifting shackle G-2150
with safety bolt and nut

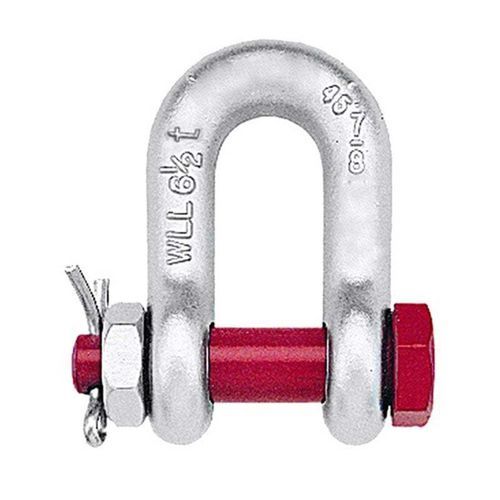

D lifting shackle - G-2150 - Xintai Taida Mirso Co., LTD - with safety bolt and nut
D lifting shackle - G-2150 - Xintai Taida Mirso Co., LTD - with safety bolt and nut
D lifting shackle - G-2150 - Xintai Taida Mirso Co., LTD - with safety bolt and nut - image - 2
Add to favorites
Compare this product
Go to the Xintai Taida Mirso Co., LTD website for more information

Characteristics

Type
D
Other characteristics
with safety bolt and nut
Breaking load

Min.: 0 t
(0 us ton)

Max.: 9 t
(10 us ton)

Description

Product Overview
Bolt-type safety D shackles (dee shackles) are intended for use where round pin or screw pin shackles are used. Bolt-type shackles provide greater security for permanent or long-term installations and where loads may shift on the pin.

Product Features
  • Material: alloy steel or carbon steel.
  • Finish: hot-dip galvanized, electro-galvanized or self-colored.
  • Heat treatment: quenched and tempered.
  • Maximum proof load: 2.0 × Working Load Limit (WLL).
  • Minimum ultimate strength: 4× or 6× WLL depending on specification.
  • Custom marking available on request.

Parameter
Note: units in inches unless stated otherwise.
Size | Working Load Limit (t) | Weight (lbs) | A | B | C | D | E | F | H | L | N | C (tolerance) | A (tolerance)
3/16 | 1/3 | 0.06 | 0.38 | 0.25 | 0.88 | 0.19 | 0.6 | 0.56 | 1.47 | 0.98 | 0.19 | 0.06 | 0.06
1/4 | 1/2 | 0.11 | 0.47 | 0.31 | 1.13 | 0.25 | 0.78 | 0.61 | 1.84 | 1.28 | 0.25 | 0.06 | 0.06
5/16 | 3/4 | 0.22 | 0.53 | 0.38 | 1.22 | 0.31 | 0.84 | 0.75 | 2.09 | 1.47 | 0.31 | 0.06 | 0.06
3/8 | 1 | 0.33 | 0.66 | 0.44 | 1.44 | 0.38 | 1.03 | 0.91 | 2.49 | 1.78 | 0.38 | 0.13 | 0.06
7/16 | 1-1/2 | 0.49 | 0.75 | 0.5 | 1.69 | 0.44 | 1.16 | 1.06 | 2.91 | 2.03 | 0.44 | 0.13 | 0.06
1/2 | 2 | 0.79 | 0.81 | 0.64 | 1.88 | 0.5 | 1.31 | 1.19 | 3.28 | 2.31 | 0.5 | 0.13 | 0.06
5/8 | 3-1/4 | 1.68 | 1.06 | 0.77 | 2.38 | 0.63 | 1.69 | 1.5 | 4.19 | 2.94 | 0.69 | 0.13 | 0.06
3/4 | 4-3/4 | 2.72 | 1.25 | 0.89 | 2.81 | 0.75 | 2.00 | 1.81 | 4.97 | 3.50 | 0.81 | 0.25 | 0.06
7/8 | 6-1/2 | 3.95 | 1.44 | 1.02 | 3.31 | 0.88 | 2.28 | 2.09 | 5.83 | 4.03 | 0.97 | 0.25 | 0.06
1 | 8-1/2 | 5.66 | 1.69 | 1.15 | 3.75 | 1.00 | 2.69 | 2.38 | 6.56 | 4.69 | 1.06 | 0.25 | 0.06

Standards
No specific standard is specified for this product.

Technical specifications
  • Materials: alloy steel or carbon steel.
  • Finish: hot-dip galvanized, electro-galvanized or self-colored.
  • Heat treatment: quenched and tempered.
  • Proof load and minimum ultimate strength as indicated above.
  • Available sizes and dimensions as listed in the Parameter section.
