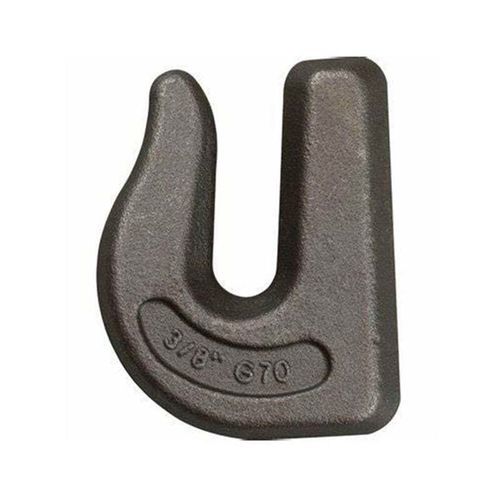

Grab hook Grade 70weldforgedfor lifting equipment
Add to favorites
Compare this product
Characteristics
- Applications
- grab
- Type
- forged, weld
- Product applications
- for chains, for lifting equipment
- Other characteristics
- for heavy loads
- Material
- steel
- Carrying capacity
Min.: 20.9 kN
Max.: 83.6 kN
Description
Product description
Parameter
SIZE | WLL (lbs.) | A | B | C | WEIGHT (lbs)
5/16" | 4,700 | 1.96" | 0.43" | 2.50" | 0.45
3/8" | 6,600 | 2.36" | 0.50" | 3.00" | 0.80
1/2" | 11,300 | 3.08" | 0.67" | 4.00" | 1.70
5/8" | 18,800 | 4.08" | 0.72" | 5.00" | 3.55
Standards
Technical specifications
- Weld-on grab hook for chain rigging and load securing
- Manufactured from Grade 70 steel
- Drop forged for consistent strength
- Self color (uncoated) finish
Parameter
SIZE | WLL (lbs.) | A | B | C | WEIGHT (lbs)
5/16" | 4,700 | 1.96" | 0.43" | 2.50" | 0.45
3/8" | 6,600 | 2.36" | 0.50" | 3.00" | 0.80
1/2" | 11,300 | 3.08" | 0.67" | 4.00" | 1.70
5/8" | 18,800 | 4.08" | 0.72" | 5.00" | 3.55
Standards
- Name: Grade 70 Weld on Grab Hook
- Package: Carton + Steel Pallet
Technical specifications
- Product type: Weld-on grab hook for chain rigging and lifting applications
- Grade: Grade 70
- Material: Grade 70 steel
- Manufacturing: Drop forged
- Finish: Self color (uncoated)
- Available sizes and working load limits (WLL) listed in Parameter table
- Typical packaging: Carton and steel pallet for shipment
