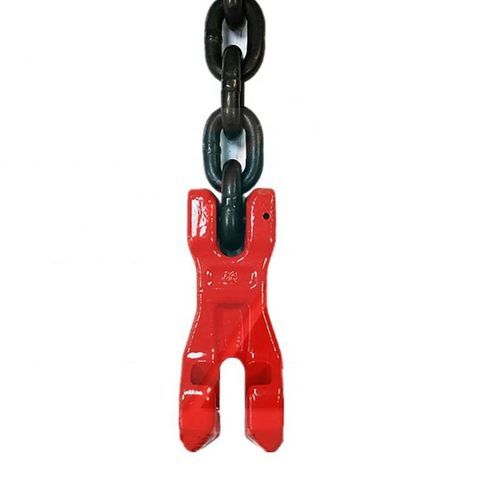

Shortening clutch Grade 80

Overview
Shortening clutch Grade 80 designed to shorten and secure lifting chains during rigging and material handling operations. Suitable for use with Grade 80 chain assemblies.

Technical specifications

• Recommended chain sizes: 5/16″ and 3/8″
• Part numbers: ?CX08 (5/16″), ?CX10 (3/8″)
• WLL (Working Load Limit): 4,500 lbs (5/16″), 7,100 lbs (3/8″)
• Dimensions (in) — 5/16″: A 0.37, B 0.37, C 0.39, D 0.37, E 0.93, F 2.20, PxL 0.35×0.89, Weight 1.06
• Dimensions (in) — 3/8″: A 0.47, B 0.47, C 0.57, D 0.47, E 1.28, F 3.07, PxL 0.51×1.24, Weight 2.41

Materials & finish

• Construction: heat-treated alloy steel rated Grade 80
• Surface: protective industrial finish suitable for lifting applications

Packaging & standards

• Name: Shortening Clutch Grade 80
• Package: Carton + steel pallet

Applications

• Used to shorten chain length and secure load position in lifting, rigging and material-handling assemblies

Ordering information

• Part mapping: ?CX08 — for 5/16″ chain; ?CX10 — for 3/8″ chain
• Specify chain size and required WLL when ordering

Safety & inspection

• Inspect device and chain before each use. Do not exceed the stated WLL. Follow applicable lifting and rigging regulations.
