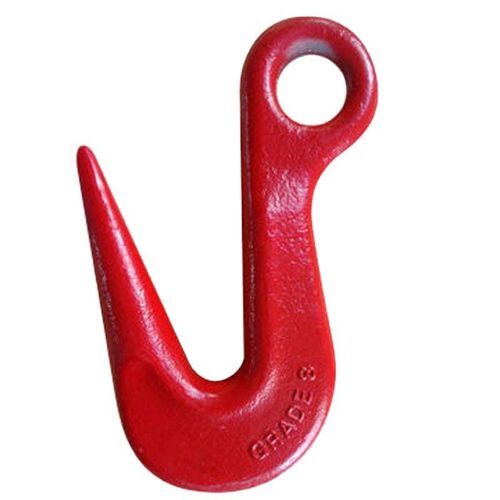

Grab hook Grade 100

eyefor heavy loadssteel

Product Overview
Grade 100 Eye Grab Hook manufactured from quenched and tempered alloy steel. Provides at least 25% greater working load limit (WLL) compared with traditional Grade 80 hooks. Supporting wings prevent chain link deformation and enable full WLL during use. Not for use with Omega Link. Minimum tempering temperature 400°C. Fatigue rated for 20,000 cycles at 1.5× WLL. Proof load tested at 2.5× WLL with batch certification. Design factor 4:1.

Technical Parameters

• 5,700 lb | 2.5 t | For Grade 100 chain 1/4 – 5/16 in | A 0.63 in | F 1.18 in | G 0.35 in | K 2.44 in | P 0.39 in | Weight 0.7 lb
• 8,800 lb | 4.0 t | For Grade 100 chain 3/8 in | A 0.79 in | F 1.57 in | G 0.51 in | K 3.23 in | P 0.51 in | Weight 1.3 lb
• 15,000 lb | 6.7 t | For Grade 100 chain 1/2 in | A 1.02 in | F 2.05 in | G 0.63 in | K 4.21 in | P 0.67 in | Weight 3.1 lb
• 22,600 lb | 10 t | For Grade 100 chain 5/8 in | A 1.18 in | F 2.24 in | G 0.79 in | K 5.19 in | P 0.83 in | Weight 8.8 lb
• 35,300 lb | 16 t | For Grade 100 chain 3/4 in | A 1.50 in | F 2.87 in | G 0.94 in | K 5.79 in | P 0.91 in | Weight 8.8 lb

Standards & Packaging

• Standards: DIN PAS 1061; ASTM A952/A952M
• Package: Carton + Steel Pallet

Technical Specifications

• Material: quenched and tempered alloy steel
• Higher WLL: at least 25% greater than traditional Grade 80
• Proof load tested at 2.5× WLL with batch certification
• Design factor: 4:1
• Fatigue rating: 20,000 cycles at 1.5× WLL
• Tempering temperature: minimum 400°C
• Restriction: Not for use with Omega Link
• Design feature: supporting wings prevent chain link deformation and enable full WLL in use
