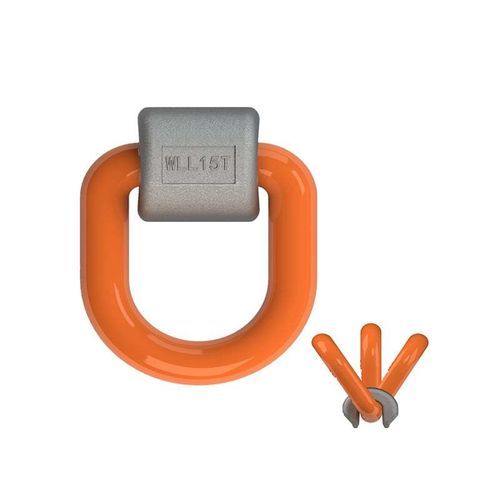

Anchor pad eye Grade 80

Product Name
Grade 80 Weld-on Ring

Introduction
The Grade 80 Weld-on Ring provides a permanent lifting point when welded to structural steel. Designed for industrial lifting and rigging applications, it is made from high-strength alloy steel and offered in multiple capacity sizes. Welding must be performed by qualified personnel and assemblies should be inspected prior to use.

Parameter
Working Load Limit (lbs) — Dimensions (inch) — Weight (lbs)
Working Load Limit: 2,200 | D: 0.55 | F: 1.06 | H: 2.24 | K: 1.57 | L: 4.29 | R: 1.97 | W: 1.97 | Weight: 1.1
Working Load Limit: 6,600 | D: 0.67 | F: 1.22 | H: 2.09 | K: 1.89 | L: 4.49 | R: 2.28 | W: 2.28 | Weight: 2.0
Working Load Limit: 11,000 | D: 0.87 | F: 1.61 | H: 3.03 | K: 2.48 | L: 6.18 | R: 2.52 | W: 2.52 | Weight: 2.9
Working Load Limit: 17,000 | D: 1.05 | F: 2.13 | H: 2.72 | K: 2.87 | L: 6.65 | R: 2.40 | W: 2.40 | Weight: 5.7
Working Load Limit: 22,000 | D: 1.18 | F: 2.13 | H: 3.46 | K: 2.87 | L: 7.52 | R: 2.95 | W: 2.95 | Weight: 6.2

Standards
Name: Grade 80 Weld-on Ring
Package: Carton + Steel Pallet

Features / Technical specifications

• Name: Grade 80 Weld-on Ring
• Package: Carton + Steel Pallet
• Working Load Limit 2,200 lbs — D 0.55 in — F 1.06 in — H 2.24 in — K 1.57 in — L 4.29 in — R 1.97 in — W 1.97 in — Weight 1.1 lbs
• Working Load Limit 6,600 lbs — D 0.67 in — F 1.22 in — H 2.09 in — K 1.89 in — L 4.49 in — R 2.28 in — W 2.28 in — Weight 2.0 lbs
• Working Load Limit 11,000 lbs — D 0.87 in — F 1.61 in — H 3.03 in — K 2.48 in — L 6.18 in — R 2.52 in — W 2.52 in — Weight 2.9 lbs
• Working Load Limit 17,000 lbs — D 1.05 in — F 2.13 in — H 2.72 in — K 2.87 in — L 6.65 in — R 2.40 in — W 2.40 in — Weight 5.7 lbs
• Working Load Limit 22,000 lbs — D 1.18 in — F 2.13 in — H 3.46 in — K 2.87 in — L 7.52 in — R 2.95 in — W 2.95 in — Weight 6.2 lbs
