D lifting shackle

heavy-dutyhigh resistancelarge

Product Overview

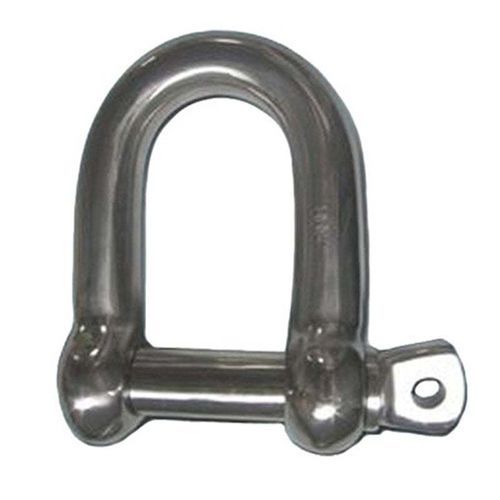

European pattern large dee shackles are identified by pin and body manufactured from the same diameter. Produced from superior grade raw material and available in standard and custom shapes and sizes for industrial lifting and rigging applications.

Introduction

• Forged – quenched and tempered.
• Finishes: Galvanized, Zinc Plated or Self Colored.
• Working Load Limit (S.W.L.) permanently marked on every shackle.

Parameters
Size | D | d | a | c | b | S.W.L. | Weight (Kg)
M5 | 5 | 5 | 10 | 19 | 11 | 80 | 1.9
M6 | 6 | 6 | 13 | 25 | 14 | 100 | 3.4
M8 | 8 | 8 | 16 | 32 | 18 | 200 | 7
M10 | 10 | 10 | 19 | 38 | 20 | 320 | 13
M11 | 11 | 11 | 22 | 44 | 23 | 400 | 16.5
M12 | 12 | 12 | 25 | 51 | 26 | 520 | 24
M16 | 16 | 16 | 32 | 64 | 33 | 800 | 50
M20 | 20 | 20 | 38 | 76 | 40 | 1100 | 80
M22 | 22 | 22 | 44 | 89 | 50 | 1500 | 130
M25 | 25 | 25 | 51 | 100 | 57 | 2100 | 200
M28 | 28 | 28 | 57 | 115 | 68 | 3000 | 300
M32 | 32 | 32 | 64 | 127 | 73 | 3500 | 430
M38 | 38 | 38 | 76 | 152 | 85 | 5000 | 675
M45 | 45 | 45 | 90 | 180 | 96 | 7000 | 1250
M50 | 50 | 50 | 102 | 200 | 108 | 8000 | 1750

Standards
Manufactured in accordance with international qualitative standards for commercial pattern shackles; specific standards and certifications available on request.

Technical specifications

• Manufacturing: Forged, quenched and tempered.
• Material: Superior grade raw material as per international qualitative standards.
• Finishes available: Galvanized, Zinc Plated or Self Colored.
• Working Load Limit (S.W.L.) permanently marked on every shackle.
• Available in standard and customized shapes and sizes.
• Size range: M5 to M50.
• S.W.L. range (per table): 80 to 8000.
• Weights per size provided in the parameter table above (Kg).
