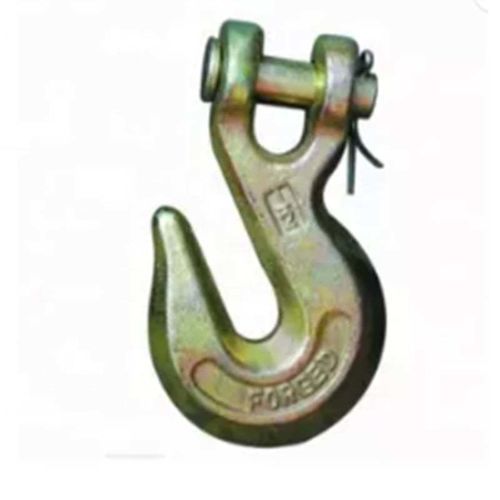

Grab hook G43forgedcleviszinc-coated steel
Add to favorites
Compare this product
Characteristics
- Applications
- grab
- Type
- forged, clevis
- Other characteristics
- zinc-coated steel, steel
- Material
- steel, zinc-coated steel
- Carrying capacity
11,565.4 N, 12,788.6 N, 17,792.9 N, 40,923.6 N, 57,826.9 N
Description
Product description
Parameters
Standards & packaging
Technical specifications
- Clevis Grab Hook G43
- Grade 43 high-test forged steel
- Clevis connection (pin-type)
- Electro-galvanized finish
- Spare parts available
- Not for overhead lifting
Parameters
- WLL (lbs): 2,600 — A: 0.35 | B: 0.38 | C: 0.39 | D: 1.97 | Weight (lbs): 0.34
- WLL (lbs): 2,875 — A: 0.41 | B: 0.43 | C: 0.44 | D: 2.27 | Weight (lbs): 0.64
- WLL (lbs): 4,000 — A: 0.47 | B: 0.47 | C: 0.51 | D: 2.63 | Weight (lbs): 1.02
- WLL (lbs): 9,200 — A: 0.73 | B: 0.55 | C: 0.69 | D: 3.13 | Weight (lbs): 2.16
- WLL (lbs): 13,000 — A: 0.91 | B: 0.75 | C: 0.79 | D: 4.94 | Weight (lbs): 3.66
Standards & packaging
- Name: Clevis Grab Hook G43
- Packaging: Carton + Steel pallet
Technical specifications
- Material: Grade 43 high-test forged steel
- Type: Clevis (pin-type)
- Finish: Electro-galvanized
- Spare parts: Available
- Not suitable for overhead lifting
- Packaging: Carton + Steel pallet
- Available Working Load Limits (WLL) in lbs.: 2,600; 2,875; 4,000; 9,200; 13,000
