Omega lifting shackle

screwfor marine applications

Description

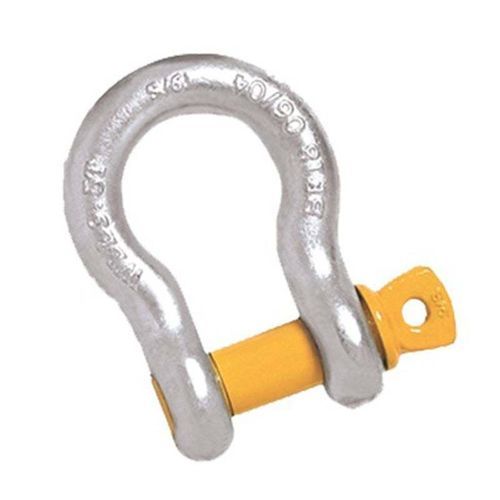

AS2741 Grade S screw pin bow shackles are designed for lifting and rigging applications, providing secure connections to chain, wire rope and other rated fittings across marine, agricultural, mining and general engineering sectors. The bow shape permits multi-directional loading with reduced side-load risk, making these shackles suitable for multi-leg slings, load rings and wider straps.

Product Features

• Manufactured to AS2741 from Grade S drop-forged steel in bow configuration with screw pin.
• Available finishes: Galvanized, Powder Coating or Self-Colored.
• Stamped with Working Load Limit (WLL) in tonnes and quality grade.
• Proof tested to 2× WLL; minimum break force 6× WLL.
• Intended for lifting and rigging: connects chain, wire rope and rated fittings; compatible with multi-leg slings and wider straps.

Dimensions & Load Table
Size (mm) | WLL (ton) | Weight (kg) | B (mm) | D (mm) | d (mm) | E (mm) | L (mm) | W (mm)
5 | 0.33 | 0.02 | 15 | 6 | 5 | 14 | 22 | 10
6 | 0.5 | 0.05 | 20 | 8 | 6 | 17 | 29 | 12
8 | 0.75 | 0.09 | 21 | 10 | 8 | 21 | 31 | 13
10 | 1 | 0.14 | 26 | 11 | 10 | 25 | 37 | 17
11 | 1.5 | 0.17 | 29 | 13 | 11 | 27 | 43 | 18
13 | 2 | 0.29 | 33 | 16 | 13 | 33 | 48 | 21
16 | 3.2 | 0.63 | 43 | 19 | 16 | 40 | 61 | 27
19 | 4.7 | 1.02 | 51 | 22 | 19 | 48 | 72 | 32
22 | 6.5 | 1.53 | 58 | 25 | 22 | 54 | 84 | 37
25 | 8.5 | 2.41 | 68 | 29 | 25 | 60 | 95 | 43
29 | 9.5 | 3.09 | 74 | 32 | 29 | 67 | 108 | 46
32 | 12 | 4.31 | 83 | 35 | 32 | 76 | 119 | 52
35 | 13.5 | 6.01 | 92 | 38 | 35 | 84 | 133 | 57
38 | 17 | 8.03 | 98 | 44 | 38 | 92 | 146 | 60
44 | 25 | 13.79 | 127 | 51 | 44 | 127 | 51 | 44

Standards
Conforms to AS2741 (Grade S)

Technical specifications

• Standard: AS2741 (Grade S).
• Material grade: Grade S drop-forged steel.
• Configuration: Bow shackle with screw pin.
• Surface finish options: Galvanized, Powder Coating or Self-Colored.
• Identification: Marked with Working Load Limit (tonnes) and quality grade.
• Testing: Proof tested to 2× WLL; minimum break force 6× WLL.
• Primary use: Lifting and rigging applications; connections to chain, wire rope and rated fittings; suitable for multi-leg slings and wider straps.
