Product Overview

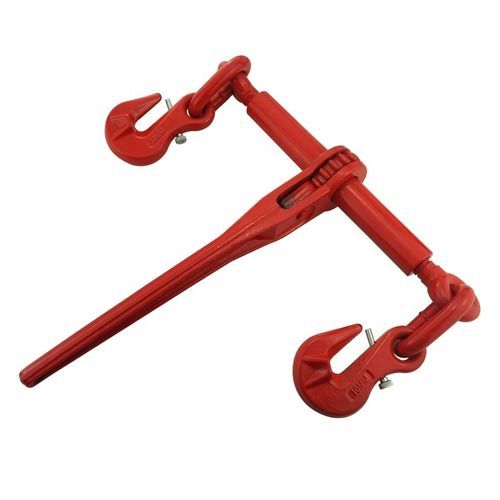

The Forged Ratchet Load Binder is a professional-grade tensioning device engineered for demanding cargo securement applications in transport, construction, and military sectors. It features 100% drop-forged steel construction for superior strength-to-weight ratio and structural integrity under extreme dynamic forces. The ratchet mechanism uses a precision-machined gear and screw system for infinite tension adjustment, eliminating the snap-back risk of lever-type binders. The handle incorporates a loose-fit, self-locking bolt system to reduce debris accumulation and allow operation in mud, snow, and ice. The binder is finished with an electrostatic powder coating for high resistance to corrosion from road salts and industrial chemicals.

Key Design & Materials
Drop-forged fabrication aligns the steel grain structure to enhance impact toughness and reduce internal porosity. Load-bearing components are made from a Chromium-Nickel-Molybdenum (CrNiMo) alloy steel selected for hardenability and fatigue resistance. A controlled Quenching and Tempering (Q&T) process yields a core hardness of 38-42 HRC to balance tensile strength and ductility, enabling rated Working Load Limit (WLL) retention down to -40°C.

Ratchet Mechanism & Fasteners
The ratchet system features precision-machined gears permanently CO2-welded to the barrel to prevent slippage under high torque. Internal screws use ACME threads, which provide self-locking behavior under load and resist loosening from road vibration. The handle length is optimized for ergonomic leverage and maximum tensioning force with minimal operator effort.

Durability & Environmental Resistance

• Electrostatic powder coating applied after multi-stage cleaning for long-term corrosion protection.
• Self-cleaning handle design reduces pivot seizing when contaminated with frozen mud or grime.
• Ergonomic handle geometry for improved mechanical advantage and reduced operator fatigue.

Standards & Testing
The product is manufactured and tested to comply with global cargo securement standards including WSTDA T-6, FMCSA 393.102, EN 12195-2 and follows CVSA guidelines for permanent WLL and manufacturer marking. Quality control and testing procedures include:

• 100% Proof Testing: each binder is proof loaded to 50% of its minimum breaking strength.
• Destructive Batch Testing: samples from production lots tested to destruction to verify a 3:1 safety factor.
• Salt Spray Testing: components subjected to 500 hours of ASTM B117 for corrosion resistance.
• Cycle Testing: ratchet mechanism tested for 5,000 cycles under load to ensure operation and gear longevity.

Safety, Maintenance & Inspection

• Pre-Use Inspection: check for bent hooks, cracked welds, or elongated threads; remove from service if deformation is visible.
• Lubrication: apply heavy-duty grease to ACME threads to prevent galling and ensure smooth operation.
• Proper Hook Engagement: ensure grab hooks are fully seated on chain links; avoid tip-loading.
• Storage: keep in a dry environment to prevent internal thread corrosion despite durable powder coating.
• Warning: never use any handle extension (cheater pipe); designed to be tightened by hand only, based on the 14-inch handle mechanical advantage.

Parameter (table)
WORKING LOAD LIMIT (LBS) | End Fittings | Chain Grade & Size (in.) [G30 / G43 / G70 / G80 / G100] | Take Up (In.) | Handle Length (In.) | Screw Diameter (In.) | Weight (lbs.)
7,100 | Hook / Hook | 5/16-3/8 / 5/16-3/8 / 5/16-3/8 / 3/8 / 5/16 | 8 | 14 | 1 | 13.0
9,200 | Hook / Hook | 3/8-1/2 / 3/8-1/2 / 3/8 / 3/8 / 3/8 | 8 | 14 | 1 | 13.0
13,000 | Hook / Hook | 1/2-5/8 / 1/2-5/8 / 1/2 / 1/2 / – | 8 | 14 | 1 | 16.0
16,000 | Hook / Hook | 1/2 / 1/2 / 1/2 / 1/2 / 1/2 | 8 | 14 | 1 | 16.0

Standards & Compliance Summary
Compliant with WSTDA T-6, FMCSA 393.102, EN 12195-2 and CVSA guidelines; subjected to proof, destructive, salt spray and cycle testing as described above.

Caractéristiques / spécifications techniques

• Denomination commerciale: Forged Ratchet Load Binder
• Construction: 100% drop-forged steel components
• Material (load-bearing parts): Chromium-Nickel-Molybdenum (CrNiMo) alloy steel
• Heat Treatment: Quenching & Tempering (Q&T) to core hardness 38-42 HRC
• Finish: Electrostatic powder coating (multi-stage surface preparation)
• Ratchet Gears: Precision-machined, permanently CO2-welded to barrel
• Threads: ACME screw threads (self-locking under load)
• Compatible Chain Grades: Designed for use with Grade 70, 80 and 100 transport chains
• Handle Length: 14 inches (optimized for mechanical advantage)
• Take Up: 8 inches (per parameter table)
• Testing: 100% proof loading to 50% MBS; destructive batch testing; 500 hours salt spray; 5,000 cycle ratchet testing
• Safety Notes: Inspect before use, lubricate ACME threads, ensure full hook engagement, do not use handle extensions
