Grab hook Grade 80
clevisfor chainssteel

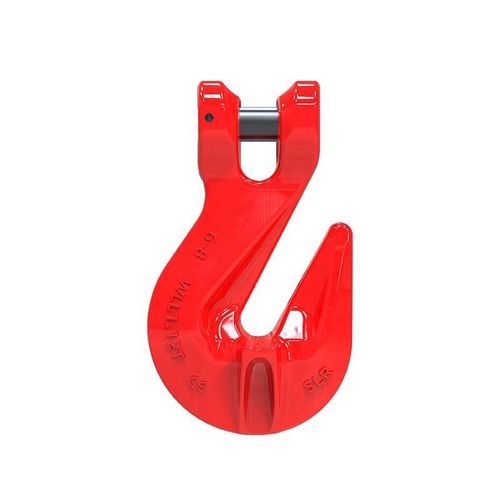

Grab hook - Grade 80 - Xintai Taida Mirso Co., LTD - clevis / for chains / steel
Grab hook - Grade 80 - Xintai Taida Mirso Co., LTD - clevis / for chains / steel
Grab hook - Grade 80 - Xintai Taida Mirso Co., LTD - clevis / for chains / steel - image - 2
Grab hook - Grade 80 - Xintai Taida Mirso Co., LTD - clevis / for chains / steel - image - 3
Add to favorites
Compare this product
Go to the Xintai Taida Mirso Co., LTD website for more information

Characteristics

Applications
grab
Type
clevis
Product applications
for chains
Material
steel
Carrying capacity

Min.: 20 kN

Max.: 152.1 kN

Description

Introduction
  • Designed to attach directly to a length of chain via the engineered clevis head
  • Engineered head prevents hook-to-chain mismatch
  • Grade 80 alloy steel
  • 4:1 design factor
  • Tough powder coat finish
  • No reduction in working load limit due to the chain supporting (saddle) in the bowl of the hook
  • Replacement parts always available
  • Proof tested and certified


Parameters
  • FOR CHAIN SIZE | WORKING LOAD LIMIT (lbs.) | A (in) | B (in) | C (in) | G (in) | H (in) | R (in) | PxL | WEIGHT (lbs)
  • 9/32-5/16″ | 4,500 | 0.39 | 0.35 | 0.39 | 1.18 | 0.94 | 1.97 | 0.35×0.89 | 0.6
  • 3/8″ | 7,100 | 0.51 | 0.51 | 0.55 | 1.73 | 1.22 | 2.83 | 0.51×1.24 | 1.65
  • 1/2″ | 12,000 | 0.67 | 0.67 | 0.67 | 2.09 | 1.50 | 3.46 | 0.63×1.65 | 2.97
  • 5/8″ | 18,100 | 0.79 | 0.83 | 0.79 | 2.52 | 2.36 | 4.37 | 0.83×2.03 | 6.16
  • 3/4″ | 28,300 | 0.94 | 0.94 | 0.94 | 3.35 | 2.56 | 5.12 | 0.94×2.42 | 10.56
  • 7/8″ | 34,200 | 1.02 | 1.02 | 1.02 | 3.43 | 2.68 | 5.47 | 1.02×2.83 | 12.43


Standards
  • Name: Grade 80 Clevis Grab Hook
  • Package: Carton + Steel Pallet


Technical specifications
  • Material: Grade 80 alloy steel
  • Design factor: 4:1
  • Finish: Tough powder coat
  • Proof tested and certified
  • Engineered clevis head to prevent hook-to-chain mismatch
  • No reduction in working load limit when chain sits in the bowl (saddle)
  • Replacement parts available
  • Available sizes and corresponding working load limits and dimensions listed above
