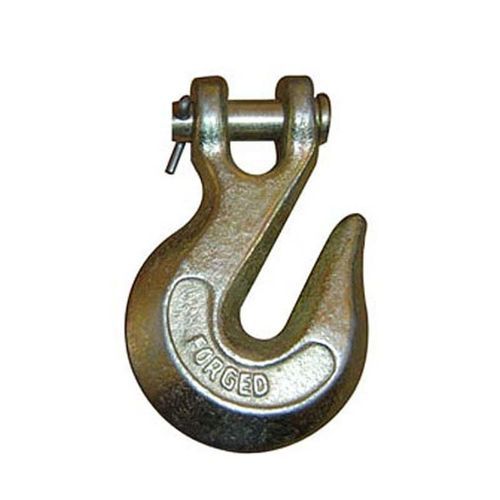

Grab hook Grade 70forgedcleviszinc-coated steel
Add to favorites
Compare this product
Characteristics
- Applications
- grab
- Type
- clevis, forged
- Material
- steel, zinc-coated steel
- Carrying capacity
Max.: 70,281.9 N
Min.: 14,011.9 N
Description
Overview
Grade 70 Clevis Grab Hook Grade 70 forged alloy steel with Gold Chromate finish (FeZn12). Spare parts always available.
Parameter
Table of dimensions
SIZE | WLL (lbs.) | A | B | C | D | WEIGHT (lbs.)
1/4" | 3,150 | .33 | .38 | .37 | 1.83 | .40
5/16" | 4,700 | .43 | .42 | .44 | 2.24 | .75
3/8" | 6,600 | .48 | .46 | .48 | 2.56 | 1.10
1/2" | 11,300 | .56 | .63 | .62 | 3.00 | 1.95
5/8" | 15,800 | .88 | .74 | .71 | 4.06 | 4.60
Standards
Name: Grade 70 Clevis Grab Hook
Package: Carton + Steel Pallet
Technical features / specifications
Grade 70 Clevis Grab Hook Grade 70 forged alloy steel with Gold Chromate finish (FeZn12). Spare parts always available.
Parameter
Table of dimensions
SIZE | WLL (lbs.) | A | B | C | D | WEIGHT (lbs.)
1/4" | 3,150 | .33 | .38 | .37 | 1.83 | .40
5/16" | 4,700 | .43 | .42 | .44 | 2.24 | .75
3/8" | 6,600 | .48 | .46 | .48 | 2.56 | 1.10
1/2" | 11,300 | .56 | .63 | .62 | 3.00 | 1.95
5/8" | 15,800 | .88 | .74 | .71 | 4.06 | 4.60
Standards
Name: Grade 70 Clevis Grab Hook
Package: Carton + Steel Pallet
Technical features / specifications
- Material: Grade 70 forged alloy steel
- Finish: Gold Chromate Finish (FeZn12)
- Safety note: WARNING: NOT FOR OVERHEAD LIFTING! NEVER EXCEED RATED CAPACITY. DO NOT USE FOR LIFTING PEOPLE OR LOADS OVER PEOPLE.
- Spare parts: Always available
- Available sizes and Working Load Limits (WLL) listed in the dimensions table above (sizes from 1/4" to 5/8")
- Weight per size provided in the dimensions table (lbs.)
