Omega lifting shackle G-209

screwhigh resistance

Product Overview

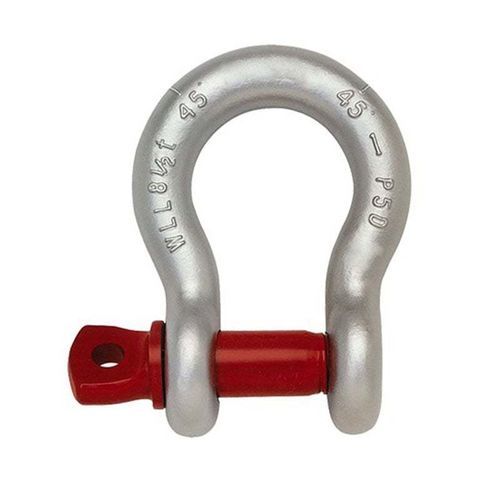

G-209 screw pin bow shackles (US type) feature a large rounded bow that accepts loads from multiple directions with minimal side loading. They are intended for use with multiple-leg slings, for connecting slings to load rings and for accommodating wider straps. The screw pin design enables quick, repeatable connections, making these shackles suitable for temporary or frequently connected/disconnected applications.

Product Features

• Screw pin closure for fast assembly and disassembly.
• Drop forged; quenched and tempered for high strength.
• Finish options: zinc plated, hot-dipped galvanized, or powder coating.
• Designed to satisfy ASME B30.26 requirements.
• Safety factor: 6:1.
• Working Load Limit (WLL) embossed on each shackle for clear identification.

Parameter (dimensions in inches)
Size | Working Load Limit | Weight (lbs) | A | B | C | E | G | H | P | C | A
3/16 | 1/3 | 0.06 | 0.38 | 0.25 | 0.88 | 0.6 | 0.98 | 1.47 | 0.19 | 0.06 | 0.06
1/4 | 1/2 | 0.1 | 0.47 | 0.31 | 0.13 | 0.78 | 1.28 | 1.84 | 0.25 | 0.06 | 0.06
5/16 | 3/4 | 0.19 | 0.53 | 0.38 | 1.22 | 0.84 | 1.47 | 2.09 | 0.31 | 0.06 | 0.06
3/8 | 1 | 0.31 | 0.66 | 0.44 | 1.44 | 1.03 | 1.78 | 2.49 | 0.38 | 0.13 | 0.06
7/16 | 1-1/2 | 0.38 | 0.75 | 0.5 | 1.69 | 1.16 | 2.03 | 2.91 | 0.44 | 0.13 | 0.06
1/2 | 2 | 0.72 | 0.81 | 0.63 | 1.88 | 1.31 | 2.31 | 3.28 | 0.5 | 0.13 | 0.06
5/8 | 3-1/4 | 1.37 | 1.06 | 0.75 | 2.38 | 1.69 | 2.94 | 4.19 | 0.69 | 0.13 | 0.06
3/4 | 4-3/4 | 2.35 | 1.25 | 0.88 | 2.81 | 2.00 | 3.50 | 4.97 | 0.81 | 0.25 | 0.06
7/8 | 6-1/2 | 3.62 | 1.44 | 1.00 | 3.31 | 2.28 | 4.03 | 5.83 | 0.97 | 0.25 | 0.06
1 | 8-1/2 | 5.03 | 1.69 | 1.13 | 3.75 | 2.69 | 4.69 | 6.56 | 1.06 | 0.25 | 0.06
1-1/8 | 9-1/2 | 7.41 | 1.81 | 1.25 | 4.25 | 2.91 | 5.16 | 7.47 | 1.25 | 0.25 | 0.06
1-1/4 | 12 | 9.50 | 2.03 | 1.38 | 4.69 | 3.25 | 5.75 | 8.25 | 1.38 | 0.25 | 0.06
1-3/8 | 13-1/2 | 13.53 | 2.25 | 1.50 | 5.25 | 3.63 | 6.38 | 9.16 | 1.50 | 0.25 | 0.13

Standards
Satisfies ASME B30.26 requirements.

Technical specifications

• Model: G-209 Screw Pin Bow Shackle (US Type).
• Manufacturing: Drop forged; quenched and tempered.
• Finish options: zinc plated, hot-dipped galvanized, powder coating.
• Compliance: ASME B30.26.
• Safety factor: 6:1.
• Identification: WLL embossed on each shackle.
• Typical applications: multiple-leg slings, connecting slings to load rings, accommodating wider straps; suitable for temporary or frequently connected/disconnected applications.
• Available sizes: 3/16" to 1-3/8" (see parameter block for full dimensions and weights).
