D lifting shackle

screwfor marine applications

Product Description

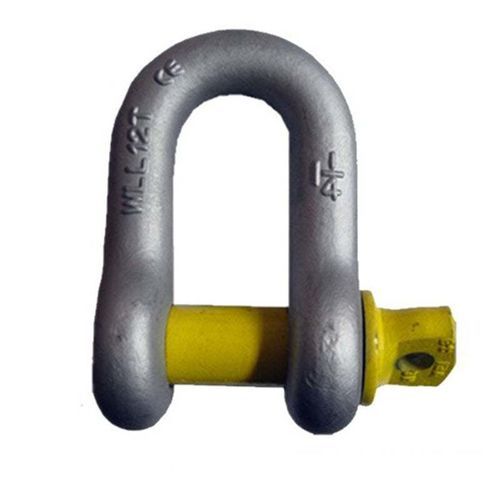

AS2741 Grade S dee shackles are drop-forged screw-pin D-shackles designed for straight-line lifting and connection to chain, wire rope and other rated fittings. They are commonly used across marine, agricultural, mining and engineering sectors where compliant lifting connections are required.

Product Features

• Manufactured to AS2741 from Grade S material in Dee (D) configuration with screw pin.
• Available surface finishes: galvanized, powder coating or self-coloured.
• Stamped with Work Load Limit (WLL) in tonnes and material/quality grade.
• Proof tested to 2× WLL; minimum break force 6× WLL.
• Intended for straight-line pulls and lifts only; not for side loading or racking.

Parameters
Size (mm) | WLL (t) | D (mm) | d (mm) | B (mm)
6 | 0.5 | 6 | 8 | 12
8 | 0.75 | 8 | 10 | 13
10 | 1 | 10 | 11 | 17
11 | 1.5 | 11 | 13 | 18
13 | 2 | 13 | 16 | 21
16 | 3.2 | 16 | 19 | 27
19 | 4.7 | 19 | 22 | 32
22 | 6.5 | 22 | 25 | 37
25 | 8.5 | 25 | 29 | 43
29 | 9.5 | 29 | 32 | 46
32 | 12 | 32 | 35 | 52
35 | 13.5 | 35 | 38 | 57
38 | 17 | 38 | 41 | 60
44 | 25 | 44 | 51 | 73
81 | 35 | 81 | 57 | 83

Standards

• AS2741 Grade S

Characteristics / Technical specifications

• Standard: AS2741 Grade S.
• Configuration: Dee (D) shackle with screw pin.
• Material grade: Grade S.
• Surface finish options: galvanized, powder coating, self-coloured.
• Identification: marked with WLL (tonnes) and quality grade.
• Testing: proof tested to 2× WLL; minimum break force 6× WLL.
• Intended use: straight-line lifts and connections to chain, wire rope and rated fittings; not suitable for side or racking loads.
