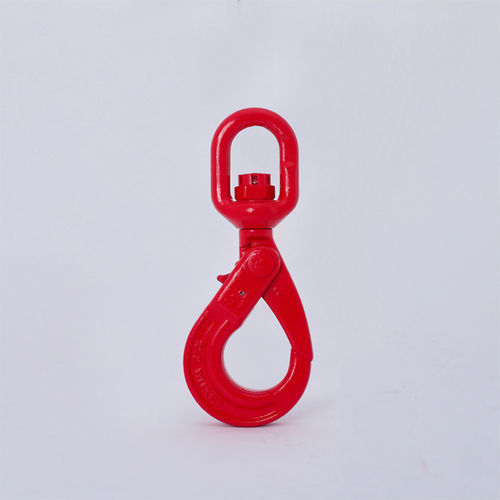

Lifting hook Grade 80

swivelfor lifting equipmentself-locking

Product Overview

• Self-locking swivel hook, Grade 100 alloy steel
• Working load limits increased at least 25% versus similar Grade 80 products
• Powder-coated finish
• Replacement parts available
• Proof tested and certified

Parameter
FOR CHAIN SIZE - WORKING LOAD LIMIT (lbs.) - A (in) - B (in) - D (in) - E (in) - F (in) - H (in) - L (in) - WEIGHT (lbs)
9/32-5/16 in - 4,500 - 1.42 - 1.22 - 0.98 - 3.39 - 1.73 - 0.51 - 1.3 - 2.65
3/8 in - 7,100 - 1.65 - 1.93 - 1.38 - 4.37 - 2.20 - 0.63 - 1.77 - 4.96
1/2 in - 12,000 - 2.09 - 2.36 - 1.57 - 5.35 - 2.76 - 0.79 - 2.13 - 9.11
5/8 in - 18,100 - 2.36 - 2.36 - 2.05 - 6.81 - 3.27 - 0.91 - 2.6 - 16.87

Standards

• Name: Grade 100 Self-locking Swivel Hook
• Package: Carton + Steel Pallet

Technical specifications

• Material: Grade 100 alloy steel
• Finish: Powder-coated
• Working load limit increased by at least 25% compared to similar Grade 80 product
• Proof tested and certified
• Replacement parts available
• Packaging: Carton + Steel Pallet
• Available sizes and key specs:
  • 9/32–5/16 in — WLL 4,500 lbs; A 1.42 in; B 1.22 in; D 0.98 in; E 3.39 in; F 1.73 in; H 0.51 in; L 1.3 in; Weight 2.65 lbs
  • 3/8 in — WLL 7,100 lbs; A 1.65 in; B 1.93 in; D 1.38 in; E 4.37 in; F 2.20 in; H 0.63 in; L 1.77 in; Weight 4.96 lbs
  • 1/2 in — WLL 12,000 lbs; A 2.09 in; B 2.36 in; D 1.57 in; E 5.35 in; F 2.76 in; H 0.79 in; L 2.13 in; Weight 9.11 lbs
  • 5/8 in — WLL 18,100 lbs; A 2.36 in; B 2.36 in; D 2.05 in; E 6.81 in; F 3.27 in; H 0.91 in; L 2.6 in; Weight 16.87 lbs
