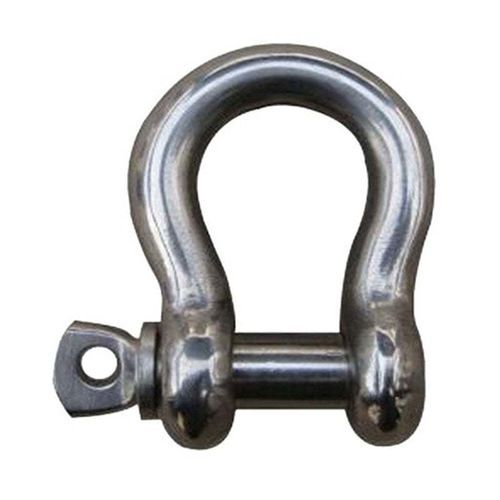

D lifting shackle

large

Product Overview
Commercial shackles are identified by the pin and body being manufactured from the same diameter. Manufactured from superior-grade raw material according to international standards, our European type large bow shackles are available in standard and custom shapes and sizes to suit industrial lifting and rigging applications.

Introduction

• Forged – quenched and tempered.
• Finish options: Galvanized, Zinc Plated or Self Colored.
• Working Load Limit (S.W.L.) permanently marked on every shackle.

Parameter
D | d | a | c | r | b | S.W.L. | Weight per 100 pcs (Kg)
5 | 5 | 10 | 19 | 8 | 11 | 80 | 2.2
6 | 6 | 13 | 25 | 10 | 14 | 100 | 4
8 | 8 | 16 | 32 | 12 | 18 | 200 | 8
10 | 10 | 19 | 38 | 16 | 20 | 320 | 15
11 | 11 | 22 | 44 | 18 | 23 | 400 | 20
12 | 12 | 25 | 51 | 19 | 26 | 520 | 30
16 | 16 | 32 | 64 | 28 | 33 | 800 | 58
20 | 20 | 38 | 76 | 33 | 40 | 1100 | 92
22 | 22 | 44 | 89 | 37 | 50 | 1500 | 149
25 | 25 | 51 | 100 | 40 | 57 | 2100 | 230
28 | 28 | 57 | 115 | 47 | 68 | 3000 | 357
32 | 32 | 64 | 127 | 52 | 73 | 3500 | 495
38 | 38 | 76 | 152 | 63 | 85 | 5000 | 805
45 | 45 | 90 | 180 | 75 | 96 | 7000 | 1,438
50 | 50 | 102 | 200 | 78 | 108 | 8000 | 2,012

Standards
Not specified on the page.

Characteristics / Technical specifications

• Denomination: European Type Large Bow Shackle
• Brand: TOPONE CHAIN
• Manufacturing: Forged, quenched and tempered
• Finish options: Galvanized, Zinc Plated or Self Colored
• Working Load Limit (S.W.L.) is permanently shown on every shackle
• Material: superior grade raw material; pin and body manufactured from same diameter
• S.W.L. range (per table): 80 to 8000
• Weight reference: weight per 100 pcs provided in the parameter table
