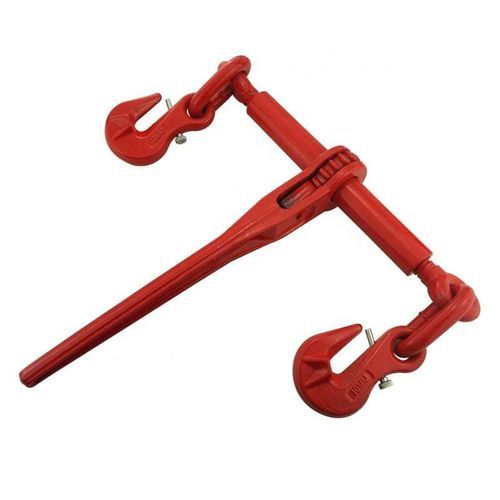

Chain load binder G70

ratchetgalvanised steel

Product Description

• Forged steel – quenched and tempered
• Heavy duty powder coat finish on body
• Hooks & screw shaft electro galvanized
• Ratchet style provides continuous take up

Parameter
DESCRIPTION | WORKING LOAD LIMIT (LBS) | BARREL LENGTH | HANDLE LENGTH | WEIGHT (LBS)
1/4" Hook – Hook | 3,150 | 6" | 6.75" | 4.0
5/16" – 3/8" Hook – Hook | 5,400 | 10" | 14.25" | 10.50
3/8" – 1/2" Hook – Hook | 9,200 | 10" | 14.25" | 13.00
1/2" – 5/8" Hook – Hook | 13,000 | 10" | 14.25" | 15.00

Standards

• Name: Ratchet Type Load Binder – G70
• Package: Carton + Steel Pallet

Features / Technical Specifications

• Material: Forged steel, quenched and tempered
• Finish: Heavy duty powder coat on body
• Hooks & screw shaft: Electro galvanized
• Operating style: Ratchet type for continuous take up
• Available sizes and Working Load Limits (WLL): 1/4" Hook – 3,150 lbs; 5/16"–3/8" – 5,400 lbs; 3/8"–1/2" – 9,200 lbs; 1/2"–5/8" – 13,000 lbs
• Dimensions by size: see Parameter block for barrel length, handle length and weight for each size
• Packaging: Carton + Steel Pallet
