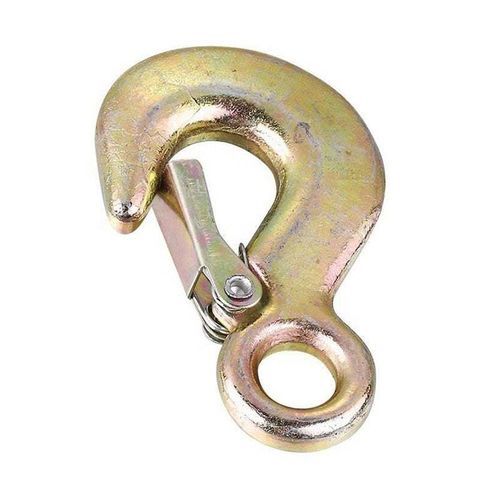

Lifting hook Grade 100

with eyefor chainsself-locking

Product overview
Grade 100 eye self-locking hook for chain lifting applications, manufactured from quenched and tempered alloy steel. Provides at least 25% greater WLL than traditional Grade 80 products. Proof load tested at 2.5× WLL with batch certification, design factor 4:1 and fatigue rated to 20,000 cycles at 1.5× WLL. Minimum tempering temperature 400°C and 100% Magnaflux crack detection on each batch.

Parameters

• WH70 — Working Load Limit (WLL): 5,700 lbs; For Grade 100 chain: 9/32–5/16 in; Dimensions (in): e: 7.13, h: 1.02, a: 0.79, w: 1.38, w1: 1.38, d2: 0.51, g: 1.34; Weight: 2.43 lbs.
• WH100 — WLL: 8,800 lbs; For Grade 100 chain: 3/8 in; Dimensions (in): e: 8.58, h: 1.18, a: 1.14, w: 1.65, w1: 1.57, d2: 0.63, g: 1.77; Weight: 4.41 lbs.
• WH130 — WLL: 15,000 lbs; For Grade 100 chain: 1/2 in; Dimensions (in): e: 10.59, h: 1.57, a: 1.38, w: 1.93, w1: 1.85, d2: 0.79, g: 2.05; Weight: 8.82 lbs.
• WH160 — WLL: 22,600 lbs; For Grade 100 chain: 5/8 in; Dimensions (in): e: 12.56, h: 1.97, a: 1.61, w: 2.36, w1: 2.36, d2: 0.94, g: 2.36; Weight: 14.99 lbs.

Standards & Packaging
Name: Grade 100 Eye Self Locking Hook; Package: Carton + Steel Pallet; Manufactured in accordance with EN 1677-3, ASME B30.26 and ASME B30.10; Certified by DGUV GS-OA-15-05 & DGUV GS-MO-15-05.

Technical specifications

• Material: Quenched and tempered alloy steel
• Working Load Limit (WLL): see Parameters
• Minimum tempering temperature: 400°C
• Design factor: 4:1
• Proof load tested at 2.5× WLL with batch certification
• Fatigue rating: 20,000 cycles at 1.5× WLL
• 100% Magnaflux crack detection on each batch
• Manufactured in accordance with EN 1677-3, ASME B30.26 and ASME B30.10
• Certified by DGUV GS-OA-15-05 and DGUV GS-MO-15-05
