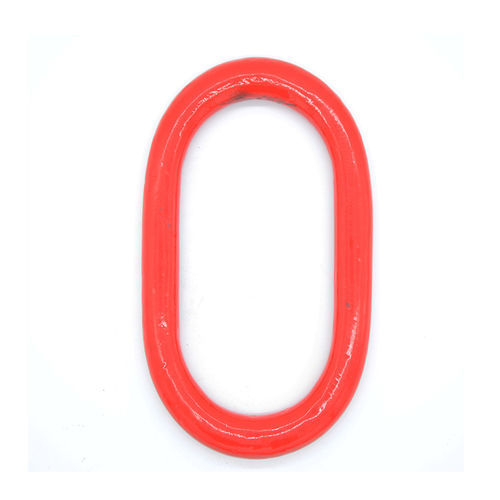

Sling masterlink G80 Weldless

for chain sling

Product Overview
G80 weldless master link range for lifting slings and rigging. Manufactured from quenched and tempered alloy steel and finished with a powder coat. Designed with large inside width and length to accommodate sling hardware and crane hooks. Available in standard and customized sizes (part numbers AX13 to AX57). Meets or exceeds ASME B30.26 requirements for identification, ductility, design factor, proof load and temperature.

Product Features

• Welded super alloy steel construction, quenched and tempered.
• Individually proof tested at 2× Working Load Limit (WLL).
• Powder-coated finish for surface protection.
• All sizes supplied welded.
• Engineered for use with Grade 80 and Grade 100 alloy steel sling hardware.
• Working load limits increased vs. comparable Grade 80 products (see parameters).

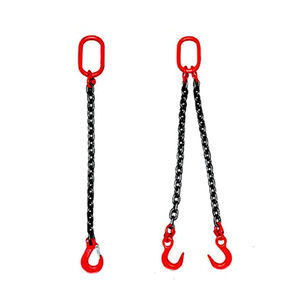

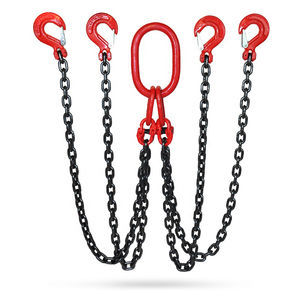

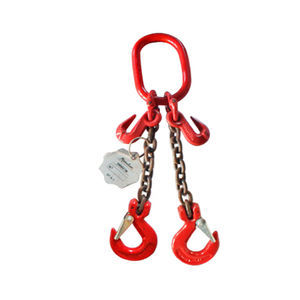

• Suitable for single- or double-leg chain or wire rope slings.
• Raised letter embossing of size and grade for easy identification.

Parameter
Part Number | Trade Size | WLL 4:1 (lbs) | WLL 5:1 (lbs) | Inside Length (in) | Inside Width (in) | Dia (in) | Chain Size (1 leg) | Chain Size (2 leg) | Weight (lbs)
AX13 | 1/2" | 6,000 | 4,800 | 4.33 | 2.36 | 0.51 | 9/32", 5/16" | 7/32" | 0.75
AX16W | 5/8" | 8,600 | 6,880 | 5.51 | 3.15 | 0.63 | 5/16" | 9/32" | 1.47
AX18W | 3/4" | 12,900 | 10,320 | 5.91 | 3.54 | 0.71 | 3/8" | 5/16" | 2.02
AX22 | 7/8" | 17,600 | 14,080 | 6.30 | 3.54 | 0.87 | 1/2" | 3/8" | 3.30
AX26 | 1" | 30,000 | 24,000 | 7.09 | 3.94 | 1.02 | 5/8" | 1/2" | 5.06
AX32 | 1 1/4" | 39,100 | 31,280 | 7.87 | 4.33 | 1.26 | 3/4" | 5/8" | 8.58
AX36 | 1 1/2" | 61,100 | 48,880 | 10.24 | 5.51 | 1.42 | 7/8" | 3/4" | 13.97
AX45 | 1 3/4" | 74,000 | 59,200 | 13.39 | 7.09 | 1.77 | 1" | 7/8" | 28.16
AX51 | 2" | 103,400 | 82,720 | 13.78 | 7.48 | 2.01 | 1 1/4" | 1" | 37.84
AX57 | 2 1/4" | 178,900 | 143,120 | 15.75 | 7.87 | 2.24 | – | 1 1/4" | 53.24

Standards & Packaging
Standard: G80 Weldless Chain / Master Link range. MOQ: 10 KG. Package: Carton + Steel Pallet.

Technical specifications

• Material: Welded super alloy steel, quenched and tempered.
• Proof test: Individually proof tested at 2× Working Load Limit.
• Finish: Powder coated.
• Compatibility: Compatible with Grade 80 and Grade 100 alloy steel sling hardware and crane hooks.
• Identification: Raised letter embossing of size and grade for easy identification.
• Applications: For single- or double-leg chain or wire rope slings used in lifting and rigging operations.
• Compliance: Meets or exceeds ASME B30.26 requirements for identification, ductility, design factor, proof load and temperature.
• Available sizes/parts: See parameter list for part numbers AX13 to AX57 with corresponding trade sizes, WLL, inside dimensions, chain sizes and weights.
