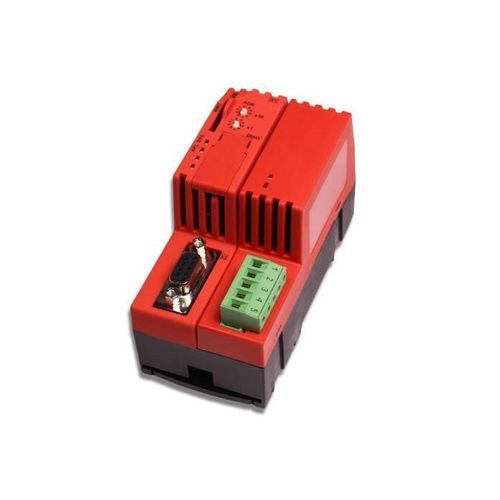

Communication gateway NT 100-DP-DN

industrialserialRS-485

Overview
The netTAP 100 NT 100-DP-DN is a DIN-rail gateway for protocol conversion between PROFIBUS DP and DeviceNet. It performs real-time I/O mapping and protocol translation including master and slave roles, enabling integration of subordinate PROFIBUS trunks into DeviceNet networks and vice versa. Licensed Master functionality is unrestricted.

Highlights

• Integrates a subordinate PROFIBUS network trunk in DeviceNet, and vice versa
• Master for up to 125 PROFIBUS slaves or 63 DeviceNet nodes
• I/O conversion cycle < 10 ms for fast real-time applications
• Device exchange within seconds using removable memory card
• Loadable firmware for flexible additional conversions
• Diagnosis and configuration via USB interface

Supported protocols

• DeviceNet Master
• PROFIBUS DP Master
• PROFIBUS DP Slave
• DeviceNet Slave

Technical specifications

• Product name: NT 100-DP-DN
• Part number: 1718.170
• Description: Gateway PROFIBUS DP to DeviceNet
• Communication controller: netX 100
• Integrated memory: 8 MB SDRAM and 4 MB serial Flash
• Memory card: SD or MMC, max. 2 GByte
• Supply voltage: 24 V DC ± 6 V
• Typical current at 24 V: 130 mA
• Typical power consumption: 3.2 W
• Power connector: Mini-COMBICON, 2-pin
• Reverse polarity protection: yes
• Communication interface X2: PROFIBUS-DP, RS-485 optically isolated, D-Sub 9-pin
• Communication interface X3: DeviceNet, ISO 11898 optically isolated, COMBICON 5-pin
• Diagnostic interface: USB (Mini-USB, 5-pin)
• Indicators: LEDs SYS, APL, COM (red/green), MNS (red/green)
• Operating elements: Network address via 2 rotary switches
• Ambient temperature (operation): 0 … +60 °C
• Humidity: no condensation permitted
• Pollution degree: use in pollution degree 2 for UL compliance
• Altitude: 0 … 2000 m
• Dimensions (L x W x H): 100 x 52 x 70 mm (without connector)
• Weight: approx. 150 g
• Degree of protection: IP 20
• Mounting: DIN rail EN 60715
• Configuration software: SYCON.net
• Conformity: RoHS = Yes, CE = Yes, UKCA = Yes
• UL certification: UL 508 (UL-File No E334100)
• EMC emission: CISPR 11 Class A; Immunity: EN 61131-2
• ESD (air): EN 61000-4-2 ±8 kV Criterion B; ESD (contact): ±4 kV Criterion A
• Burst: EN 61000-4-4 ±2 kV Criterion B; Surge (data lines): EN 61000-4-5 ±1 kV Criterion B
