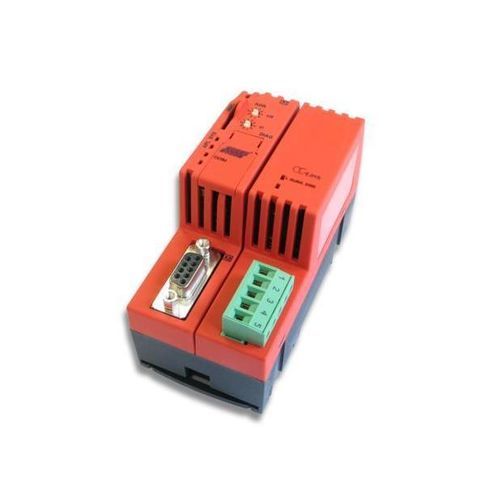

Communication gateway NT 100-DP-CC

industrialEthernetserial

Product overview
netTAP 100 is a protocol gateway that connects and translates between a 2-port real-time Ethernet protocol and fieldbus or serial automation protocols. It supports conversions between fieldbus-fieldbus, fieldbus-serial and Ethernet-fieldbus, with unrestricted licensed Master capability. The device includes a memory card slot for firmware and configuration storage allowing rapid replacement by transferring the card to a spare unit. netTAP 100 also supports custom serial protocol programming via the Lua-based netSCRIPT scripting language and includes a development environment for fast implementation of proprietary protocols and I/O pre-/post-processing during conversion.

Highlights

• Integrates a subordinate PROFIBUS network trunk into a CC-Link system
• Acts as PROFIBUS Master for up to 125 PROFIBUS Slaves
• Fast I/O data conversion cycle: < 10 ms
• Device exchange in seconds using removable memory card
• Loadable firmware to enable additional conversion profiles
• Diagnosis and configuration via USB interface

Supported protocols

• PROFIBUS DP Master
• PROFIBUS DP Slave
• CC-Link Slave

Technical specifications

• Product name: NT 100-DP-CC
• Part number: 1718.140
• Brief description: Gateway PROFIBUS DP to CC-Link Slave
• Communication controller: netX 100
• RAM: 8 MB SDRAM
• FLASH: 4 MB serial Flash
• Memory card: SD or MMC, max. 2 GByte
• Supply voltage: 24 V DC ± 6 V
• Maximum current at 24 V (typical): 130 mA
• Typical power consumption: 3.2 W
• Power connector: Mini-COMBICON, 2-pin (reverse polarity protection)
• PROFIBUS interface (X2): PROFIBUS-DP, RS-485 optically isolated, D-Sub 9-pin
• CC-Link interface (X3): CC-Link V2.0 and 1.1, RS-485, COMBICON 5-pin
• Diagnostic interface: USB, Mini-USB 5-pin
• Indicators: LEDs - SYS, APL, COM (Duo red/green), L RUN / L ERR
• Configuration: network address via 2 rotary switches
• Operating temperature: 0 … +60 °C
• Humidity: no condensation permitted
• Pollution degree: use in pollution degree 2 for UL compliance
• Altitude: 0 … 2000 m
• Dimensions (L x W x H): 100 x 52 x 70 mm (without connector)
• Weight: approx. 150 g
• Degree of protection: IP20
• Mounting: DIN rail EN 60715
• Configuration software: SYCON.net
• RoHS: Yes
• UL certification: UL 508 (UL-File No E334100)
• EMC: CE, UKCA; Emission: CISPR 11 Class A; Immunity: EN 61131-2
