Data connector NL 51N-DPL

RJ45EthernetPC

Product overview

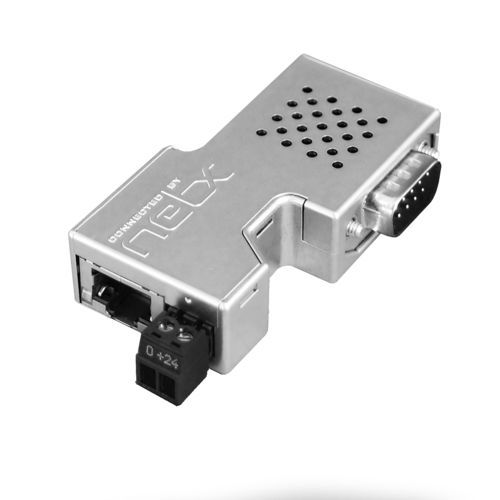

netLINK PROXY NL 51N-DPL is a plug-on PROFINET/PROFIBUS proxy connector that integrates an existing PROFIBUS DP slave into a PROFINET network. The device is mounted directly onto the PROFIBUS DP interface of the slave and connects to PROFINET via an RJ45 Ethernet port. It behaves on PROFINET as a standard I/O device and maps the slave process data as modules into PROFINET slots/subslots.

Highlights

• Quick conversion of PROFIBUS DP slaves into PROFINET IO-Devices
• Direct plug-on mounting to the slave's PROFIBUS DP interface
• Full support of PROFIBUS alarms, diagnosis and DPV1
• Automatic GSDML generation for easy import into PROFINET controllers
• Certified device that removes the need for customer-side PROFINET certification

Supported protocols

• PROFIBUS DP (Slave)
• PROFINET IO-Device

Installation & configuration
Commissioning is performed via the Ethernet port either by direct connection to a PC or through a PROFINET switch during runtime. Configuration and diagnosis are carried out with the FDT/DTM-based SYCON.net tool. If the slave GSD file is not available, a scan function can automatically identify the device on the PROFIBUS and retrieve configuration parameters.

Technical specifications

• Form factor: plug-on proxy connector for direct mounting on PROFIBUS DP interface
• PROFINET interface: RJ45 Ethernet socket
• Power supply: 24 V (can be tapped from the DP slave and connected to a 2-pin COMBICON)
• Automatic scan and GSDML generation to simplify PROFINET controller import
• Supports PROFIBUS alarms, diagnostics and DPV1
• No external bus termination required for short PROFIBUS transmission distances

Ordering & documentation

• Family: netLINK PROXY
• Model/reference: NL 51N-DPL
• Typical use: upgrade existing PROFIBUS DP slaves to PROFINET networks without device redesign
• Documentation available: installation and hardware description, configuration guides, datasheets and application notes
