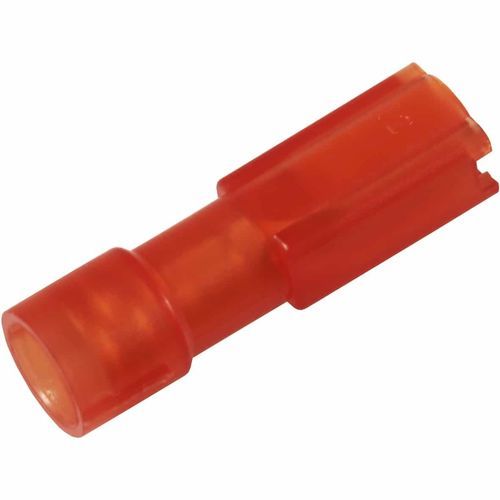

Female solderless terminal A1503FLSF5quick-disconnectsleevetubular
Add to favorites
Compare this product
Characteristics
- Connection type
- female, quick-disconnect, sleeve
- Configuration
- tubular
- Insulation
- insulated
- Material
- copper, tin, brass, PA, PC
- Other characteristics
- halogen-free
- Lenght
19.5 mm
(0.77 in)- Inner diameter
3.4 mm
(0.13 in)
Description
Material: brass, tin plated Cu/Sn, unbrazed neck with reinforcement sleeve.
Insulation halogen-free PA, Easy-entry.
Fully insulated receptacle for 0.5-1.5 mm² cable. Used with certified tool GSA0760.
W (mm): 5.5
s (mm) - strip length: 7
Insulation material: PA
Tab Size: 2,8x0,5
Insulation colour: Red (insulated terminals)
Material: Brass, Cu/Sn
Easy-entry: Yes
Neck type: Reinforcement sleeve
AWG/MCM Cu: 20 - 16 AWG
mm² Cu: 0,5-1,5
Catalogs
No catalogs are available for this product.
See all of Elpress‘s catalogsOther Elpress products
