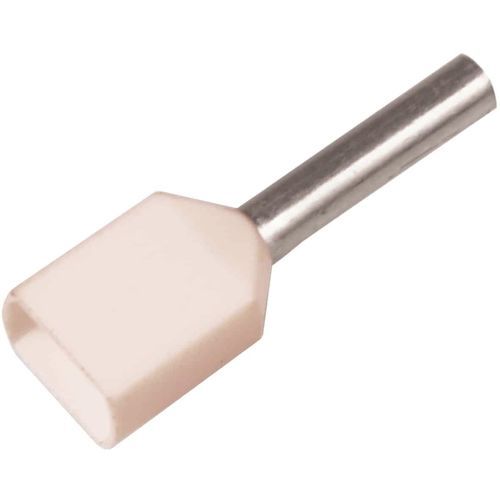

Sleeve solderless terminal A0,5-6ETT2tubularinsulatedcopper
Add to favorites
Compare this product
Characteristics
- Connection type
- sleeve
- Configuration
- tubular
- Insulation
- insulated
- Material
- copper, tin, polypropylene
- Lenght
6 mm, 13 mm
(0.24 in, 0.51 in)- Inner diameter
1.5 mm
(0.06 in)- Outer diameter
4.5 mm
(0.18 in)
Description
Material: Cu 99.95%, tin plated Cu/Sn, CSA approved.
Polypropylene insulation, colour code T.
Pre-insulated TWIN end terminal ETT2, 0.5 mm². Used with certified tool PEB0110T.
H (mm): 2.3
s (mm) - strip length: 8
Working temperature, Min (°C): -5
Working temperature, Max (°C): 105
Insulation material: PP
Insulation colour: White (end sleeves)
Material: Cu, Cu/Sn
AWG/MCM Cu: 2x20 AWG
mm² Cu: 2 x 0,5
