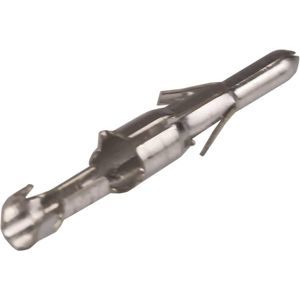

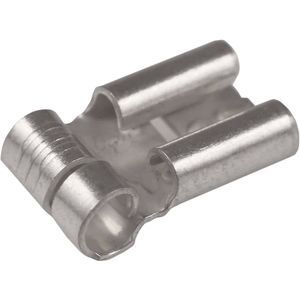

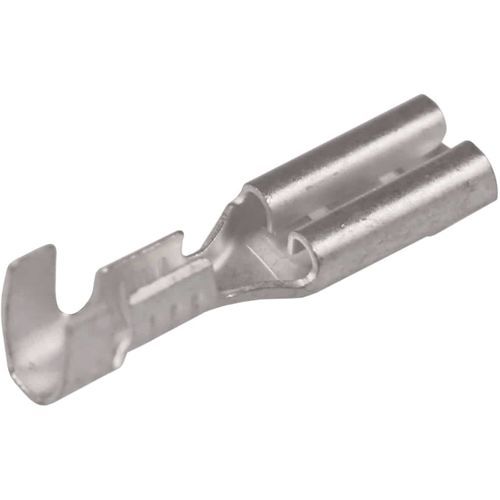

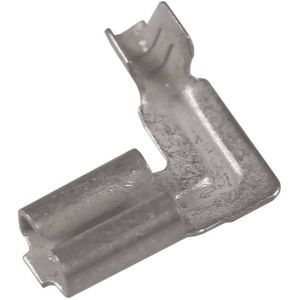

Female solderless terminal B1003FLS5quick-disconnectsleevetubular
Add to favorites
Compare this product
Characteristics
- Connection type
- female, quick-disconnect, sleeve
- Configuration
- tubular
- Insulation
- non-insulated
- Material
- copper, tin, brass
- Lenght
14 mm
(0.55 in)
Description
e (mm): 6
t (mm) - palm thickness: 0.25
s (mm) - strip length: 7
Tab Size: 2,8x0,5
AWG/MCM Cu: 20 - 18 AWG
mm² Cu: 0,5-1
Halogen free: Yes
Surface protection: Tin plated
Insulation: Not isolated
Material: Brass
AWG-range, Min: 20
AWG-range, Max: 18
Nominal cross section, Min (mm²): 0.5
Nominal cross section, Max (mm²): 1
